KOMATSU PC900LC-11
- Share
2024
Komastu
PC900LC-11
New
Ontario

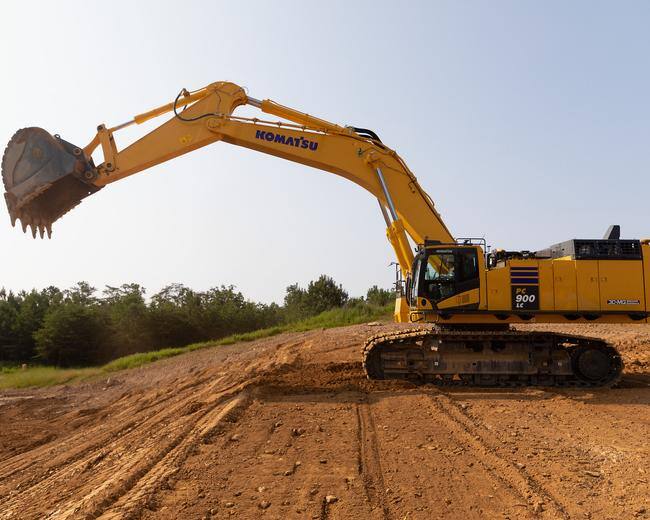

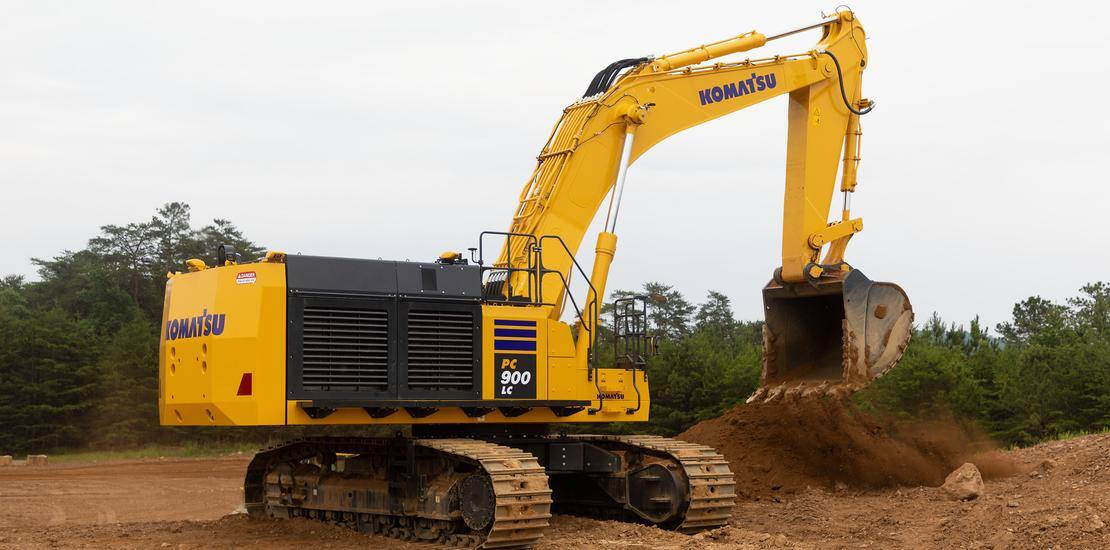

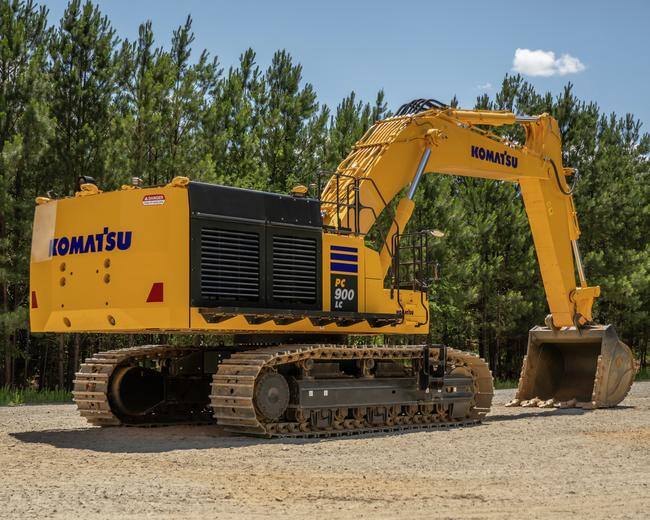

The PC900LC-11 is built for tough jobs that require high performance. This excavator is an easy-to-transport, versatile machine with exceptional power and digging capabilities. Excellent for construction, mass excavation, material handling, deep sewer and water installations, and mining/quarry environments. The PC900LC-11 is a perfect four-pass match for the HM400-5 truck.
- 10% more engine HP*
- 11% stronger bucket digging force*
- 48% more productive* (more HP, larger bucket and better hydraulics increase cycle times)
-
40% more efficient* (with the Tier 4 engine and enhanced hydraulic circuits).
*Versus the PC800LC-8 model
Engine
| Model | Komatsu SAA6D140E-7 | |
| Type | Common rail direct injection, watercooled, emissionised, turbocharged, after-cooled diesel | |
| Engine power | ||
| ISO 14396 | 543 HP | |
| ISO 9249 (net engine power) | 538 HP | |
| Number of cylinders | 6 | |
| Displacement | 930 in3 | |
Environment
| Engine emissions | Tier IV-Final - fully complies with EU Stage V exhaust emission regulations |
| Noise levels | |
| LwA external | 109 dB(A) (2000/14/EC Stage II) |
| LpA operator ear | 75 dB(A) (ISO 6396 dynamic test) |
Drives and Brakes
| Max. drawbar pull | 124,994 lbf |
| Travel speed | 1.7/2.5 mph |
Swing system
| Swing speed | 6.8 rpm |
| Swing torque | 237,243 lbf-ft |
Machine dimensions
| Tail swing radius | 15'5" |
| Track length on ground | 16'6" |
| Track gauge | 11'7" |
Bucket and arm force (ISO)
| Arm / boom length | 12'1" / 27'6" |
| Arm breakout force | 76,660 lbf |
| Bucket breakout force | 90,598 lbf |
Working range
| Arm length | 12'1" |
| Boom length | 27'6" |
| Maximum digging height | 44'2" |
| Maximum digging depth | 29'6" |
| Maximum digging reach | 46'7" |
Features and benefits

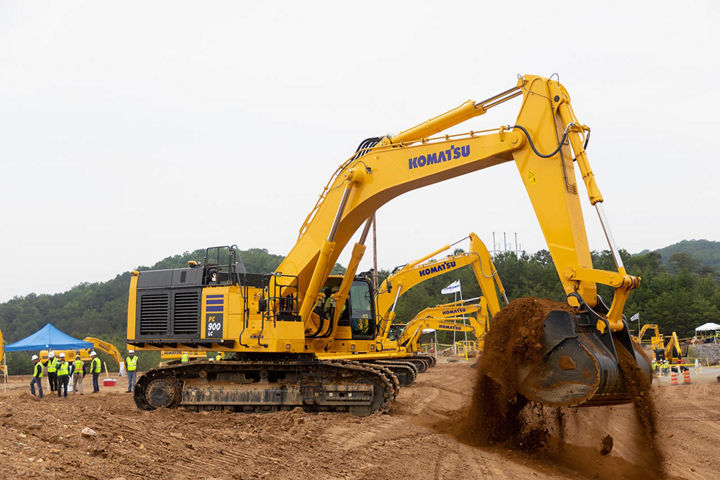

Efficient and productive excavation
When your operators need to meet demanding production targets, they will appreciate this excavator's improved engine power, crowd-digging force, swing torque, lift capacity and increased bucket size options.

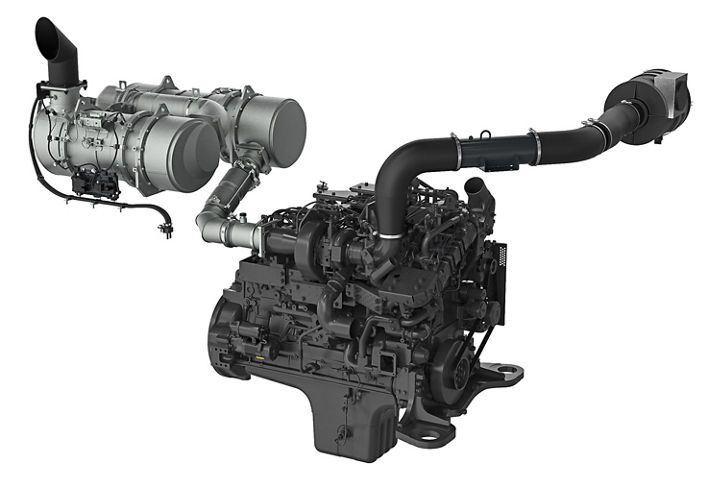

Optimized machine performance
Get a high-performance engine and enhanced hydraulics technology with this versatile excavator that handles high-production demands in large-scale operations while promoting machine reliability.

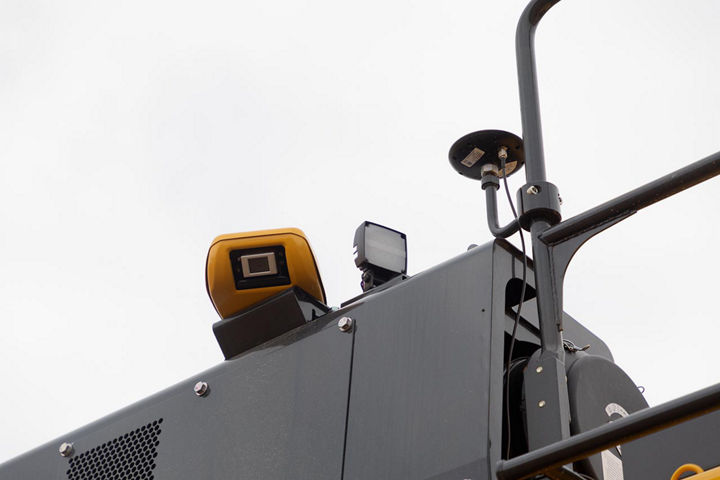

More capabilities with advanced technology
Operators can promote safety and streamline their performance with technology like the KomVision camera system's real-time view of immediate surroundings and optional Smart Construction 3D guidance and payload monitoring.

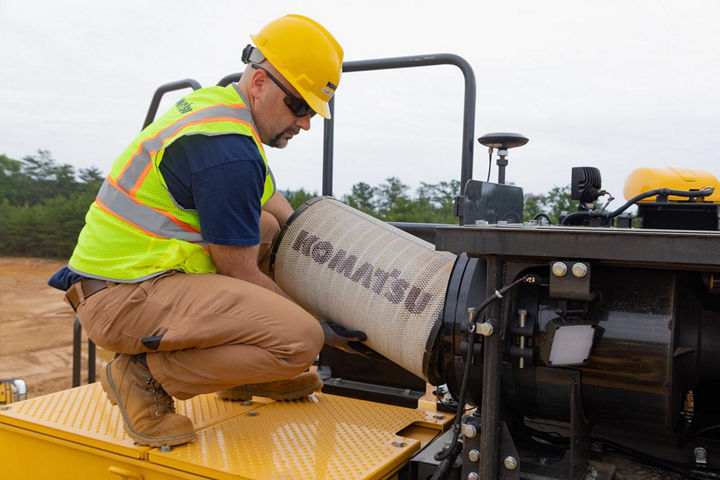

Simple serviceability
Make maintenance easy and help minimize downtime with convenient access to all filters, oil level checks, sample ports and engine maintenance service areas with top, left and right walkways.

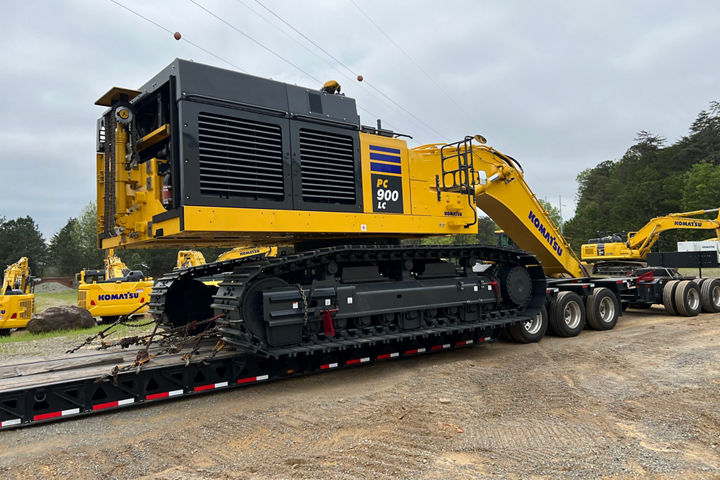

Expand your operation’s versatility
The new counterweight removal system makes the excavator easier to transport on trailers and move between job sites, simplifying logistics and helping reduce transportation costs.

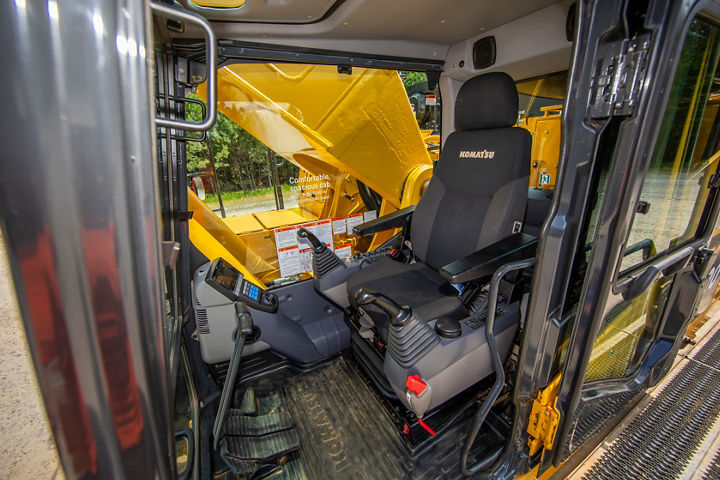

Promote operator productivity
Make those long shifts comfortable with a spacious, quiet cab and an adjustable seat. The short joystick control levers provide a convenient, ergonomic workspace that promotes operator productivity.
