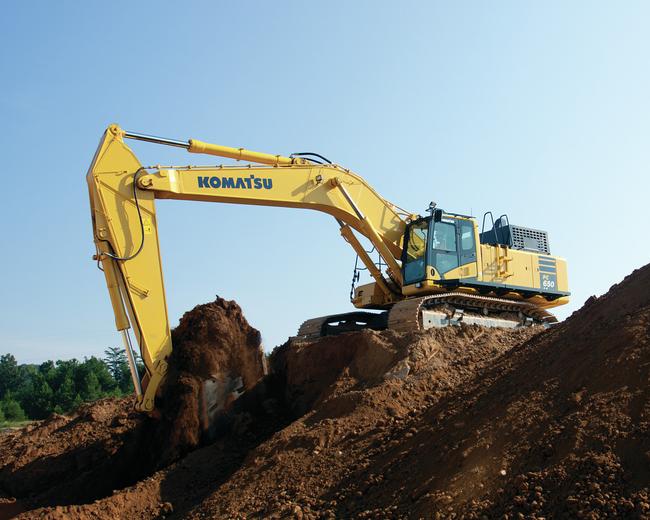

KOMATSU PC650 LC-11
- Share
2024
Komastu
PC650 LC-11
New
Ontario
Versatile
High performance
Built for longevity
Transportability
Engine
| Model | Komatsu SAA6D140E-7* |
| Type | Water-cooled, 4-cycle, direct injection |
| Aspiration | Turbocharged, aftercooled, cooled, EGR |
| Number of cylinders | 6 |
| Bore | 5.51 in |
| Stroke | 6.50 in |
| Piston displacement | 930 in³ |
| Horsepower: | |
| SAE J1995 (Gross) | 439 HP |
| ISO9249 / SAE J1349 (Net) | 436 HP |
| Rated rpm | 1,800 rpm |
| Hydraulic fan at maximum speed (Net) | 392 HP |
| Governor | All-speed control, electronic |
| Fan drive type | Hydraulic |
*EPA Tier 4 Final emissions certified
Hydraulics
| Type | Open-center load sensing system, 3 selectable working modes |
| Main pump: | |
| Type | Variable capacity piston |
| Pumps for | Boom, arm, bucket, swing, and travel circuits |
| Maximum flow | 2 x 108 US gpm |
| Sub-pump for control circuit | Gear type |
| Hydraulic motors: | |
| Travel | 2 x axial piston motors with parking brake |
| Swing | 2 x axial piston motors with swing holding brake |
| Relief valve setting: | |
| Implement circuits | 4,700 psi |
| Travel circuit | 4,980 psi |
| Swing circuit | 3,700 psi |
| Pilot circuit | 430 psi |
| Hydraulic cylinders / Number of cylinders: | Bore x Stroke: |
| Boom / 2 | 7.3 x 67.9 x 4.7 in |
| Arm / 1 | 7.9 x 80.5 x 5.5 in |
| Bucket / 1 | 7.3 x 56.1 x 5.1 in |
Drives and Brakes
| Steering control | Two levers with pedals |
| Drive method | Fully hydrostatic |
| Travel motor | Axial piston motor, in-shoe design |
| Reduction system | Planetary double reduction |
| Maximum drawbar pull | 93,250 lbs. |
| Gradeability | 70%, 35° |
| Maximum travel speed: | |
| High | 3.0 mph |
| Low | 1.9 mph |
| Service brake | Hydraulic lock |
| Parking brake | Oil disc brake |
Swing System
| Driven method | 2 x hydraulic motors |
| Swing reduction | Planetary gear |
| Swing circle lubrication | Grease-bathed |
| Service brake | Oil disc brake |
| Holding brake/Swing lock | Mechanical disc brake |
| Swing speed | 8.3 rpm |
| Swing torque | 154,481 ft.-lbs. |
Undercarriage
| Center frame | H-leg |
| Track frame | Box-section |
| Track Type | Sealed |
| Track adjuster | Hydraulic |
| Number of Shoes | 52 each side |
| Number of carrier rollers | 3 each side |
| Number of track rollers | 9 each side |
Coolant & Lubricant Capacity (Refilling)
| Fuel tank | 232.5 US gal |
| Coolant | 20.1 US gal |
| Engine | 12.7 US gal |
| Final drive, each side | 2.65 US gal |
| Swing drive | 2 x 3.4 US gal |
| Hydraulic tank | 95.0 US gal |
| Diesel Exhaust Fluid (DEF) tank | 16.4 US gal |
Sound Performance
| Exterior – ISO 6395 | 104 dB(A) |
| Operator – ISO 6396 | 73 dB(A) |
Operating Weight (Approximate)
Operating weight includes 25 ft. 2 in one-piece boom, 11 ft. 6 in arm, ISO 7451 heaped 3.53 yd3 bucket, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment.
| Triple-Grouser Shoes | Operating Weight | Ground Pressure |
| 24 in | 140,456 lbs. | 15.16 psi |
| 30 in | 142,396 lbs. | 12.3 psi |
| 35.5 in | 144,292 lbs. | 10.3 psi |
ENGINE
- Alternator & A/C compressor auto-tensioner
- Automatic engine warm-up system
- Dry type air cleaner, double element
- Engine, Komatsu SAA6D140E-7
- Fuel pre-filter with water separator
- Variable speed cooling fan, hydraulic drive, reversible
ELECTRICAL SYSTEM
- Alternator, 24 V/90 A
- Auto-decelerator
- Batteries, 2 x 12 V/170 Ah
- Battery disconnect switch
- Circuit breaker
- Horn, electric
- Horn interconnected with warning light
- Power supply, 12 V
- Starting motor, 24 V/11 kW
- Step light with timer
- Working light, 2 (Boom and RH)
- Working lights, 2 on cab
HYDRAULIC SYSTEM
- 3-mode system (Power, Economy, Lifting)
- Arm holding valve
- Boom holding valve
- Fully hydraulic, with Open-Center Load-Sensing and engine speed sensing (Pump and engine control system)
- In-line high pressure filters
- Power maximizing system
- Pressure Proportional Control (PPC) hydraulic control system
- Shockless control system for boom
- Two-mode setting for boom
GUARDS AND COVERS
- Fan guard structure
- Strengthened revolving frame underguard
- Track frame undercover (Center)
UNDERCARRIAGE
- Hydraulic track adjusters (Each side)
- Track roller, 9 (Each side)
- Track shoe, 35.5" triple grouser
- Variable track gauge
OPERATOR ENVIRONMENT
- A/C with defroster
- AM/FM radio
- Auxiliary input (3.5 mm jack)
- Cab with pull-up type front window
- Engine shut down secondary switch
- High-back suspension seat, heated
- Large high resolution LCD monitor
- Lock lever
- Mirrors (RH, LH)
- Operator protective top guard (OPG), level 1 (ISO 12117-2)
- Rear view monitor system
- Seat belt, retractable, 78 mm
- Washable cab floor mat
OTHER EQUIPMENT
- Counterweight, 26,358 lbs
- Electric priming pump for fuel
- Equipment Management Monitoring System
- Grease gun, electric pump type
- Hand rails & guard rails
- KOMTRAX
- One-touch engine oil drainage
- Preventive Maintenance (PM) tune-up service connector
- Rear reflector
- Slip-resistant plates
- Travel alarm
- Wide walkway
GUARDS AND COVERS
- Cab guards
- Bolt-on top guard, OPG Level 2 (ISO 10262)
- Full front guard, OPG Level 2 (ISO 10262) - Track roller guard (Full length)
OPERATOR ENVIRONMENT
- Cab accessories
- Rain visor
- Sun visor - KomVision
OTHER EQUIPMENT
- Counterweight removal device with 10657 kg 23,496 lb counterweight
WORK EQUIPMENT
- Arms
- 11'6" arm assembly
- 14'1" arm assembly
- 17'1" arm assembly - Boom
- 25'1 boom assembly
- boom cylinders only
Features and benefits

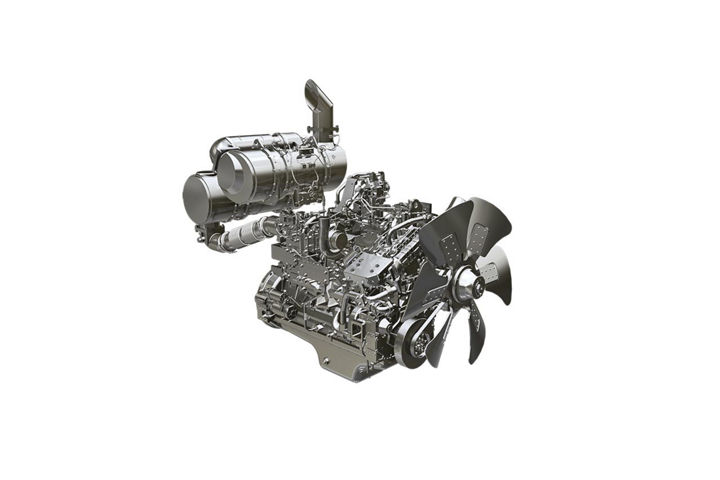

Increased horsepower
You will appreciate the low operating noise, easy serviceability of emissions components and increased horsepower (+7 hp) of the high-performance engine that is EPA Tier 4 Final emissions certified.

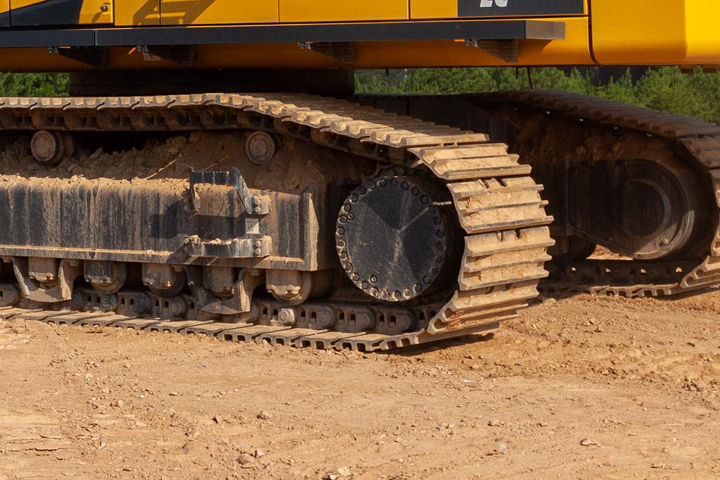

Engineered for long life
Your excavator is designed to be part of your fleet for a long time with its sturdy undercarriage, robust under guards and the use of thick, high-tensile-strength steel plates throughout the boom and arm structures.

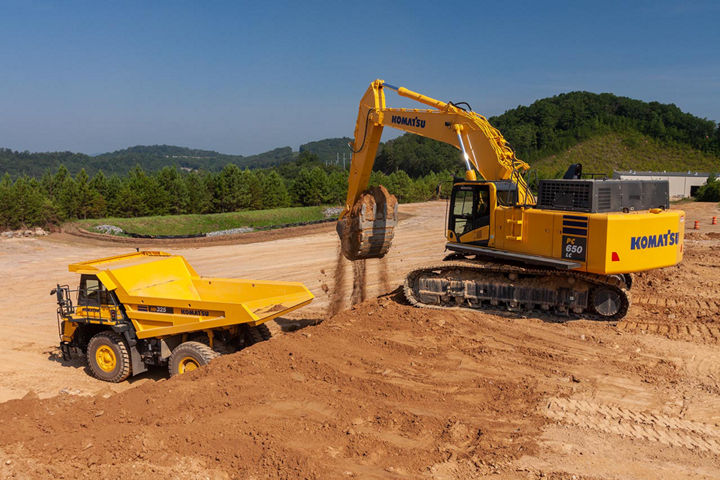

Quick cycle times
For your heavy-duty projects, the dual swing motors and arm quick return circuit provide fast cycle times under heavy loads.

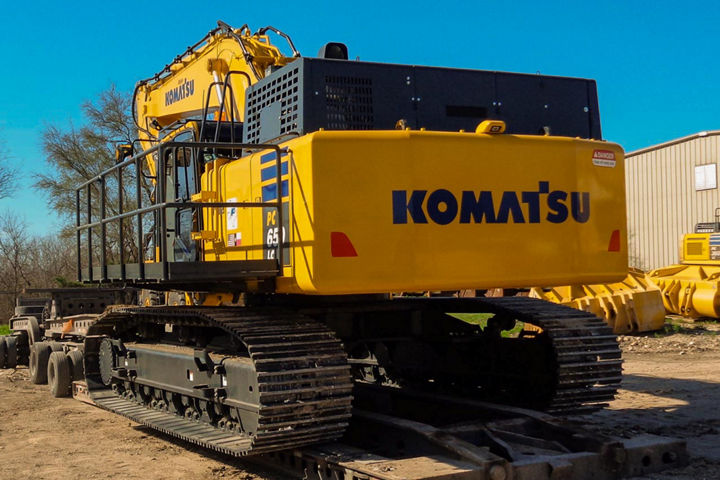

Easy to move
You will enjoy how easy it is to transport the PC650LC-11 between job sites and the less disassembly required to meet transportation weight requirements. Plus, you don’t need to rent a crane to remove the counterweight during movement, which can help lower your transportation costs.

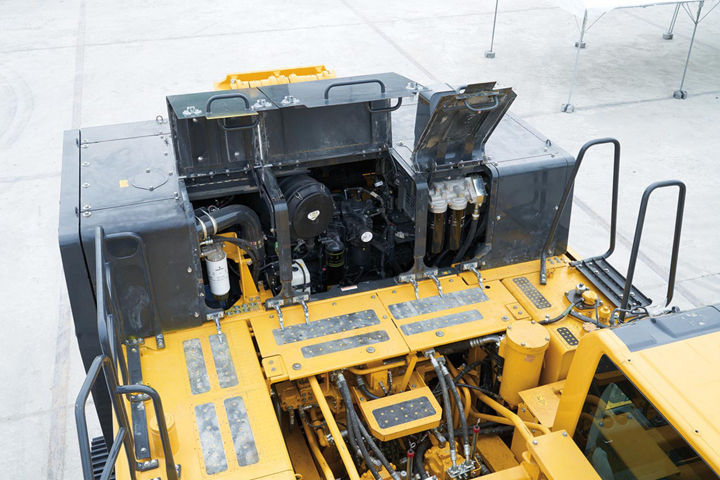

Simplified maintenance
Ease of serviceability with latched service access doors and grouped service points. Designed to save time and money on repairs, Tier 4 Final emission system diagnostics monitor up to 167 vehicle parameters and notifies you when and where maintenance is required.

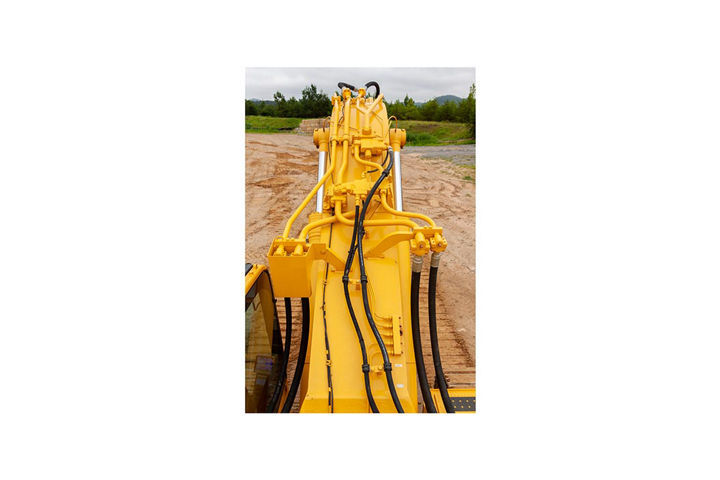

Cost-saving hydraulic efficiency
You will appreciate this machine’s increased hydraulic efficiency and reduced fuel consumption with its larger bucket return piping size that reduces hydraulic back pressure in the bucket circuit in order to match the machine load to hydraulic pump output.

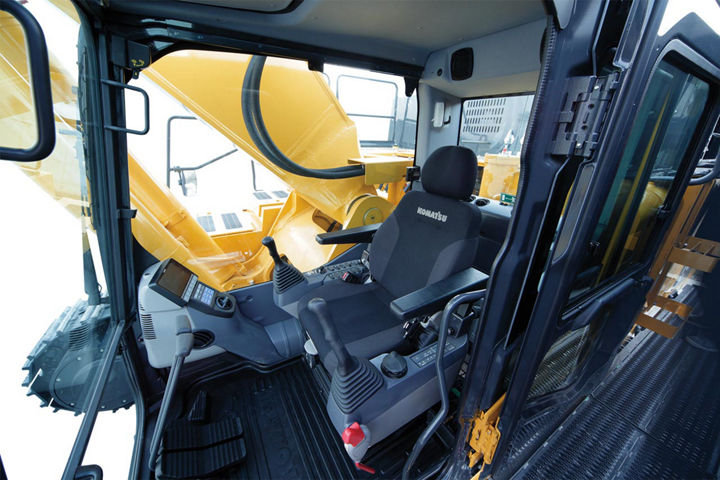

Operator comfort
Your operator will enjoy the quiet cab with less vibration, auto climate control, adjustable arm rests, and a rearview camera monitoring system combined with mounted work lights and skylight that helps improve visibility upward and in low light working conditions.

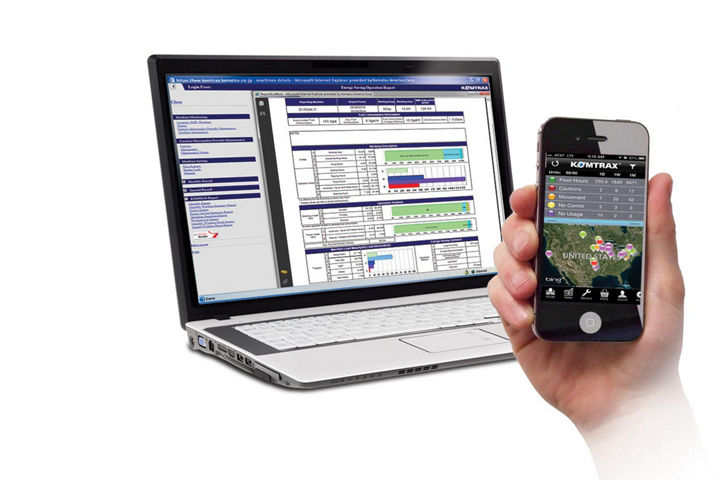

Advanced telematics technology
Keep track of your machines and their productivity with free, state-of-the-art remote monitoring services.
Service and support
Protect your investment with complimentary factory-scheduled Komatsu Care maintenance for the first three years or 2,000 hours, whichever occurs first.
