KOMATSU D37EX-24
- Share
2024
Komastu
D37EX-24
New
Ontario

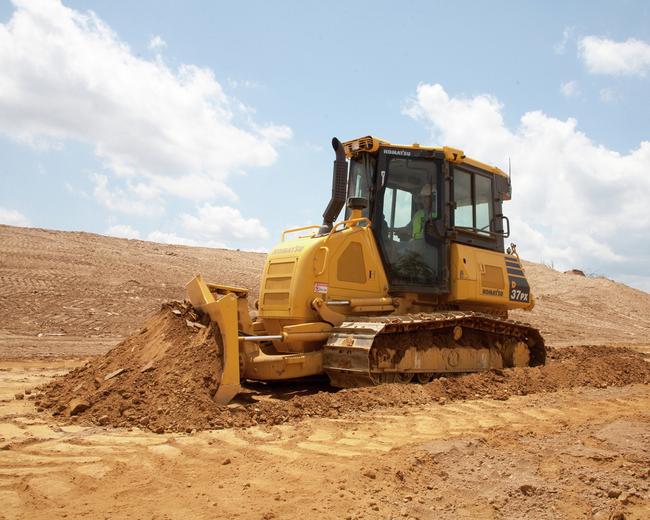

When you need easily transportable power
When your job demands a transportable dozer that delivers power plus precise grading, the D37 may be the answer. Your operators enjoy excellent blade visibility, agility and comfort. You get versatility for construction site work, high-speed grading and more.
- Easy to transport
- Precision grading

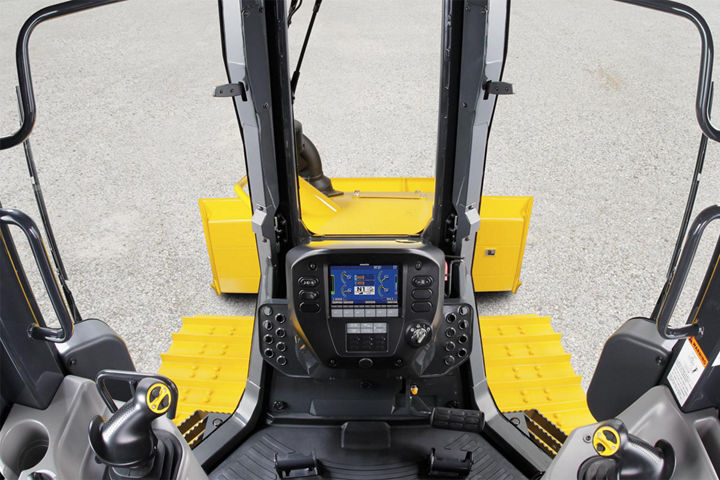

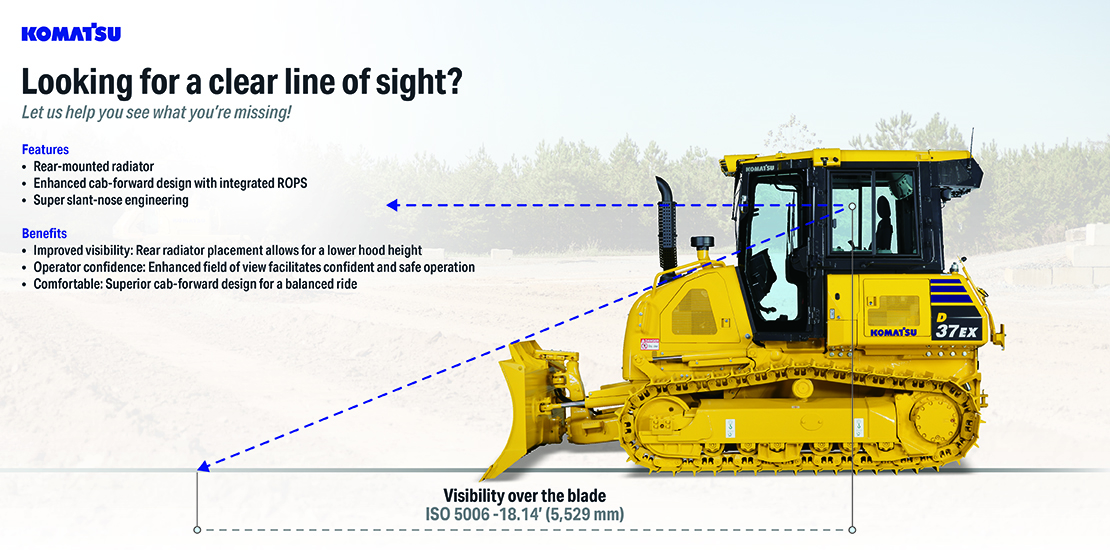

- Outstanding blade visibility
- Agile performance with HST technology
Engine
| Model | Komatsu SAA4D95LE-7* |
| Type | 4-cycle, watercooled, direct injection |
| Aspiration | Variable flow, turbocharged, air-to-air aftercooled |
| Number of cylinders | 4 |
| Bore x stroke | 3.75 x 4.52 in |
| Piston displacement | 199 in³ |
| Governor | All-speed, electronic |
| Horsepower: | |
| SAE J1995 - Gross | 91 HP |
| ISO 9249 / SAE J1349 - Net | 89 HP |
| Rated rpm | 2,200 rpm |
| Fan drive type | Hydraulic |
| Lubrication system: | |
| Method | Gear pump, force lubrication |
| Filter | Full-flow |
*EPA Tier 4 Final emissions certified
Hydrostatic transmission
Dual-path, hydrostatic transmission provides infinite speed changes up to 8.5 mph. The variable capacity travel motors allow the operator to select the optimum speed to match specific jobs. Travel control lock lever and neutral switch.
| Travel speed (quick shift mode)* |
Forward | Reverse |
| 1st | 0–2.1 mph | 0–2.5 mph |
| 2nd | 0–3.5 mph | 0–4.0 mph |
| 3rd | 0–5.3 mph | 0–5.3 mph |
| Travel speed (variable mode) |
0–5.3 mph | 0–5.3 mph |
*Quick shift speeds are adjustable in the monitor.
Final drive
In-shoe mounted, axial-piston-type travel motors, with integrated two-stage planetary gear reduction. Compact, in-shoe mount reduces risk of damage by debris. Bolt-on sprocket ring with triple labyrinth seal design.
Steering system
Palm Command Control System (PCCS) joystick control for all directional movements. Pushing the joystick forward results in forward machine travel, while pulling it back reverses the machine. Simply tilt the joystick to the left or right to make a turn. Tilting the joystick fully to the left or right activates counter-rotation.
Hydrostatic Transmission (HST) provides smooth, powerful turns. Fully electronic control enables smooth control that can be adjusted in the monitor. The PCCS utilizes shift buttons to increase and decrease speed.
| Minimum turning radius* | 83 in |
*As measured by track marks on the ground at pivot turn.
Undercarriage
| Suspension | Rigid track frame |
| Track roller frame | Monocoque, large section, durable construction |
| Rollers and idlers | Lubricated track rollers |
| Sealed and lubricated track | Track tension is easily adjusted with grease gun. |
| Number of track rollers (each side) | 6 |
| Number of carrier rollers (each side) | 1 |
| Type of shoes (standard) | Single grouser |
| Number of shoes (each side) | 41 |
| Grouser height | 1.9 in |
| Shoe width (standard) | 18 in |
| Ground contact area | 3,180 in² |
| Ground pressure (with standard shoe) (ISO 16754) |
5.56 psi |
| Track gauge | 5 ft. 2 in |
| Length of track on ground | 7 ft. 4 in |
Service refill capacities
| Coolant | 9.0 US gal |
| Fuel tank | 50.2 US gal |
| Engine oil | 2.9 US gal |
| Hydraulic tank | 17 US gal |
| Final drive (each side) | 0.9 US gal |
| Diesel Exhaust Fluid (DEF) tank | 2.6 US gal |
Operating weight (approximate)
| Tractor weight: Including ROPS cab, U frame for power angle tilt dozer, rated capacity of lubricant, coolant, full fuel tank, operator, and standard equipment. |
17,505 lbs. |
| Operating weight: Operating weight: Including power angle tilt dozer, ROPS cab, operator, standard equipment, rated capacity of lubricant, coolant, and full fuel tank. |
19,842 lbs. |
- Accumulator for Electric Proportional Control (EPC)
- Air cleaner, dry, double element type with caution lamp on monitor
- Air conditioner (A/C)
- Air inlet
- Alternator, 24 V/85 A
- Back-up alarm
- Batteries, large capacity 24 V/92 Ah
- Cab accessories
—12 V × 2 power supply
—Cup holder
—Rear view mirror
—Rear view monitor system - Crankcase guard and underguard
- Decelerator/brake pedal (Single pedal)
- Electronically controlled Hydrostatic Transmission (HST) with quick-shift and variable speed settings
- Electronic monitor panel with on-board diagnostics
- Engine hood and side panels
- Engine, KOMATSU SAA4D95LE-7, gross output of 91 HP, direct injection, water-cooled turbocharged, air-to-air aftercooler, cooled EGR, EPA Tier 4 Final and EU Stage 4 emissions certified
- Fan, hydraulic driven, electronic control
- Filler cap locks and cover locks
- Foot rest, high mounted
- Fuel pre-filter (10 micron) and fuel filter (2 micron)
- Grease gun holder
- High altitude arrangement (No fuel adjustment up to 2300 m)
- Horn
- Hydraulics for PAT dozer
- Intake pipe with precleaner
- Large high-resolution LCD
- Lunch box holder
- Marks and plates, English
- New Operator Identification System
- Palm Command Control System (PCCS) with electronic control for travel control
- Palm Command Control System (PCCS) with EPC for blade control
- Power turn with counter rotation
- Pullhook, front
- Radiator guard grid
- Radiator reserve tank
- Real-time DEF monitoring
- Rear-hinged radiator guard
- Reverse travel speed presets
- ROPS cab Meets ISO 3471, SAE J/ISO 3471 ROPS standards, and ISO 3449 FOPS standard.
- Seat belt, 3" retractable
- Seat, air suspension, fabric, heated, low back, headrest
- Shovel holder
- Starting motor, 24 V/4.5 kW
- Self adjusting roller
- Sprockets, bolt-on
- Sprocket inner guard
- Track roller guards, end section
- Track shoe assembly (PLUS)
—Sealed and lubricated
D37EX-24: 18" single grouser shoe
D37PX-24: 24" single grouser shoe - Triple labyrinth final drive
- Water separator
- Worklamp (Front 3, rear 2)
- Dozer assembly
- Hitch
- Hydraulics for rear equipment
- Track roller guard, full length
- Multi-shank ripper (for D37EX only)
- Weight:1,036 lb
- Beam length: 62"
- Maximum lift above ground: 15"
- Maximum digging depth: 13"
- Number of shanks: 3 - 16" single grouser (EX)(PLUS)
