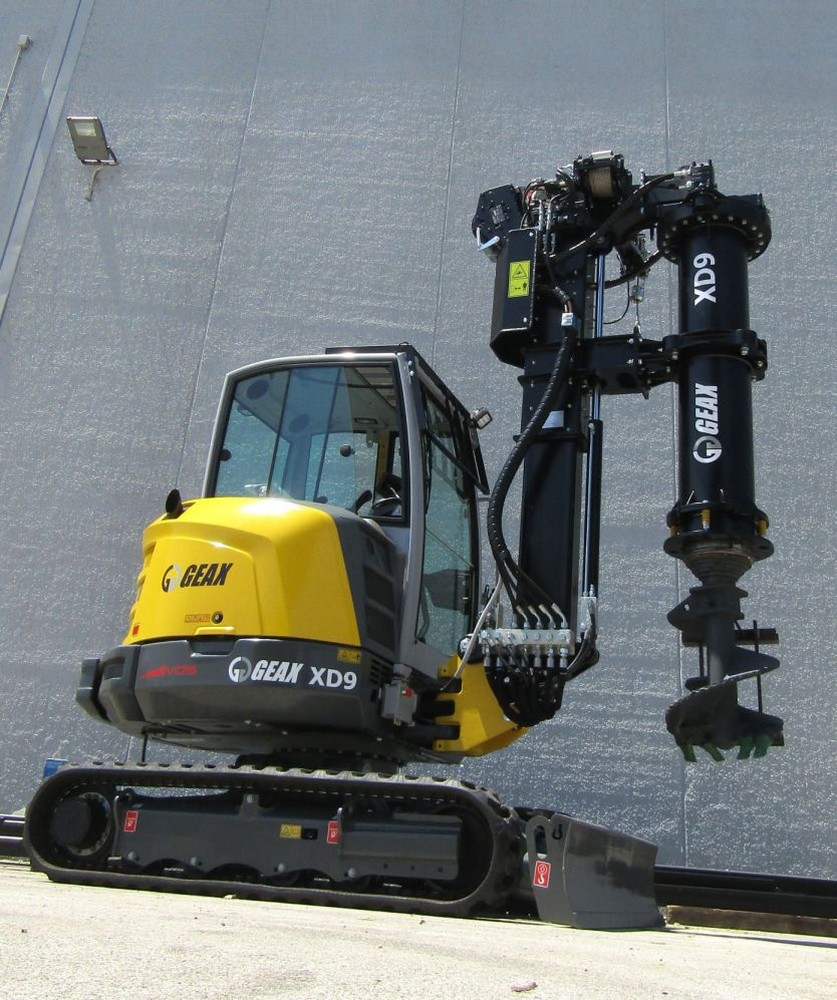

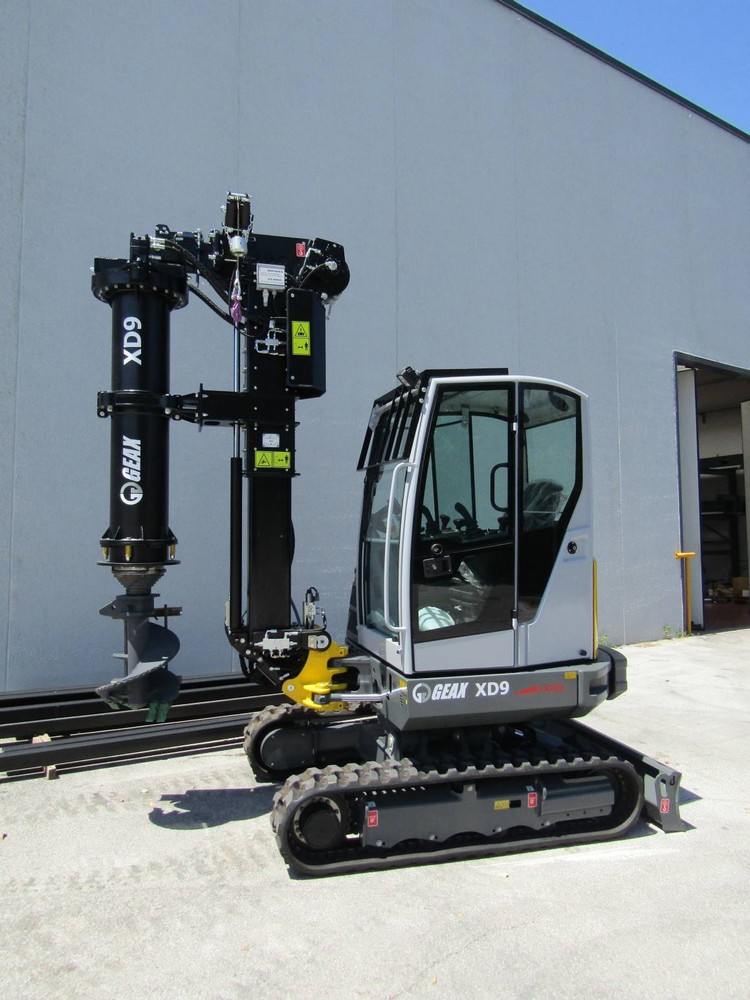

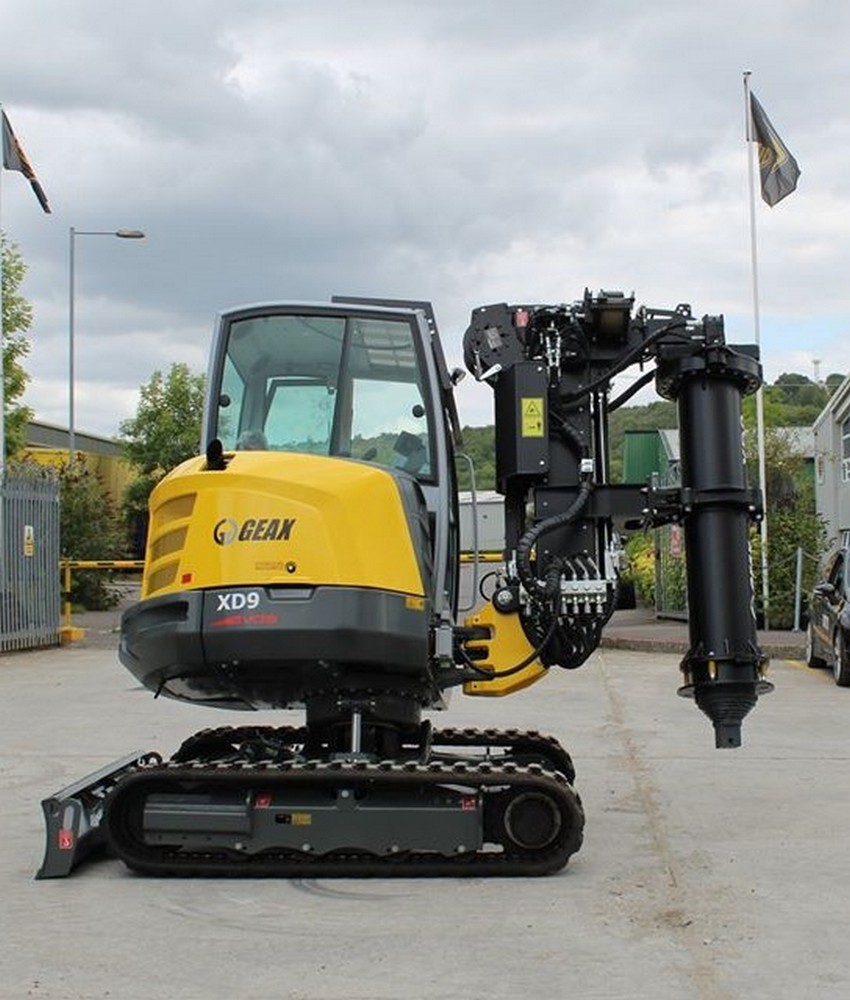

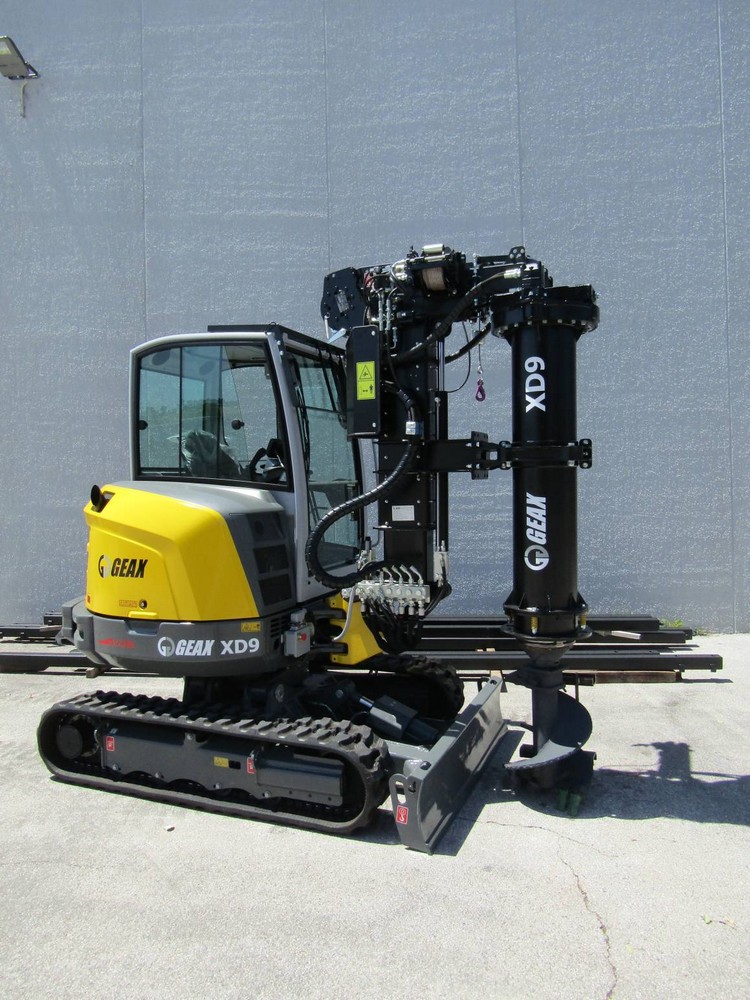

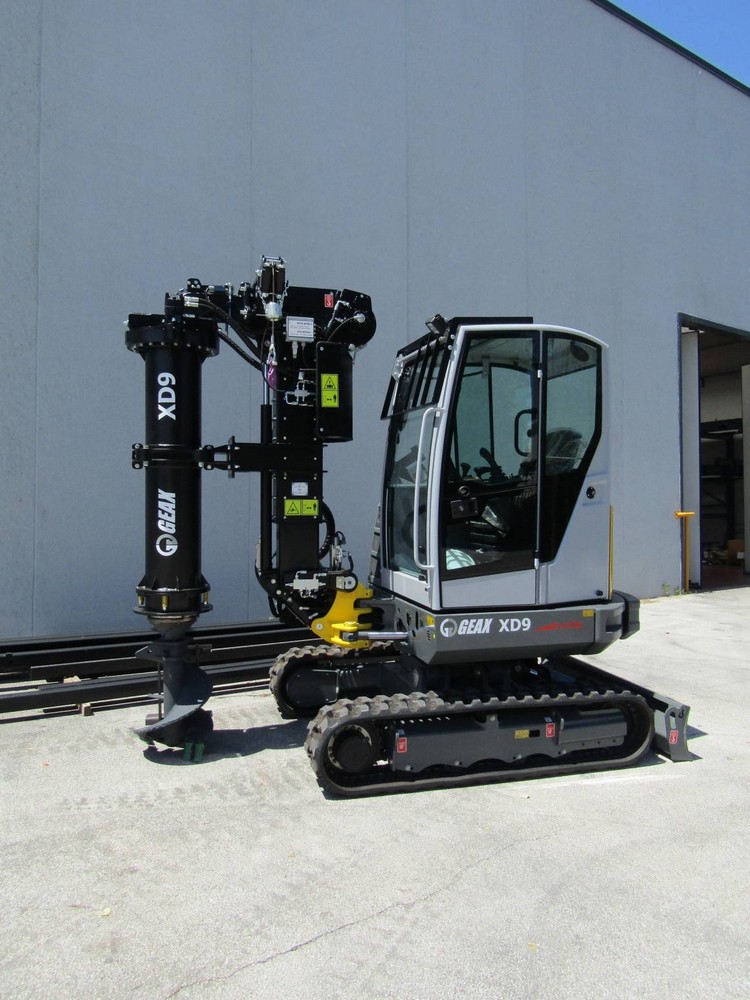

GEAX-xd9
- Share
Year
2024
Manufacturer
Geax
Price
Contact Us For Pricing
Model
XD9
Condition
New
| Base | |
| Engine power | 29.8 kW – 39.9 hp |
| Undercarriage length | 2.062 mm – 6.8 ft |
| Width over tracks | 1.630 mm – 5.3 ft |
| Mast | |
| Forward inclination | 7.5° |
| Backward inclination | 3.5° |
| Lateral inclination | 0 ÷ 15° |
| Mast vertical stroke | 900 mm – 3 ft |
| Rotary | |
| Nominal torque | 8 kNm – 5.900 lbf ft |
| Drilling speed (2) | 20 ÷ 40 rpm |
| Winches | |
| Main winch line pull | 15 kN – 3.400 lbf |
| Aux winch line pull | 6 kN – 1.350 lbf |
| Crowd system | |
| Pull down force | 25 kN – 5.600 lbf |
| Extraction force | 40 kN – 9.000 lbf |
| Excavation | |
| Max pile diameter | 600 mm – 24 in |
| Max pile depth | 12 m – 40 ft |
| Min working headroom | 2.800 mm – 9.2 ft |
| Transport | |
| Length | 3.430 mm – 11.25 ft |
| Width | 1.630mm – 5.3 ft |
| Height | 2.575 mm – 8.4 ft |
| Weight | 4.500 kg – 9.920 lb |
