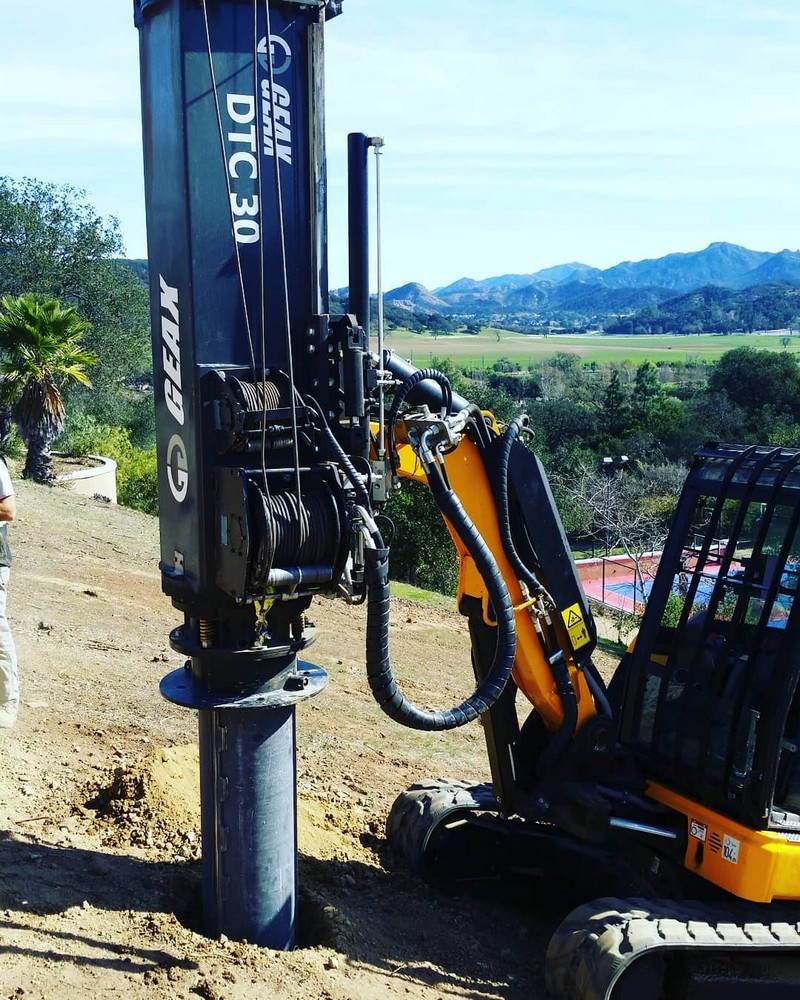

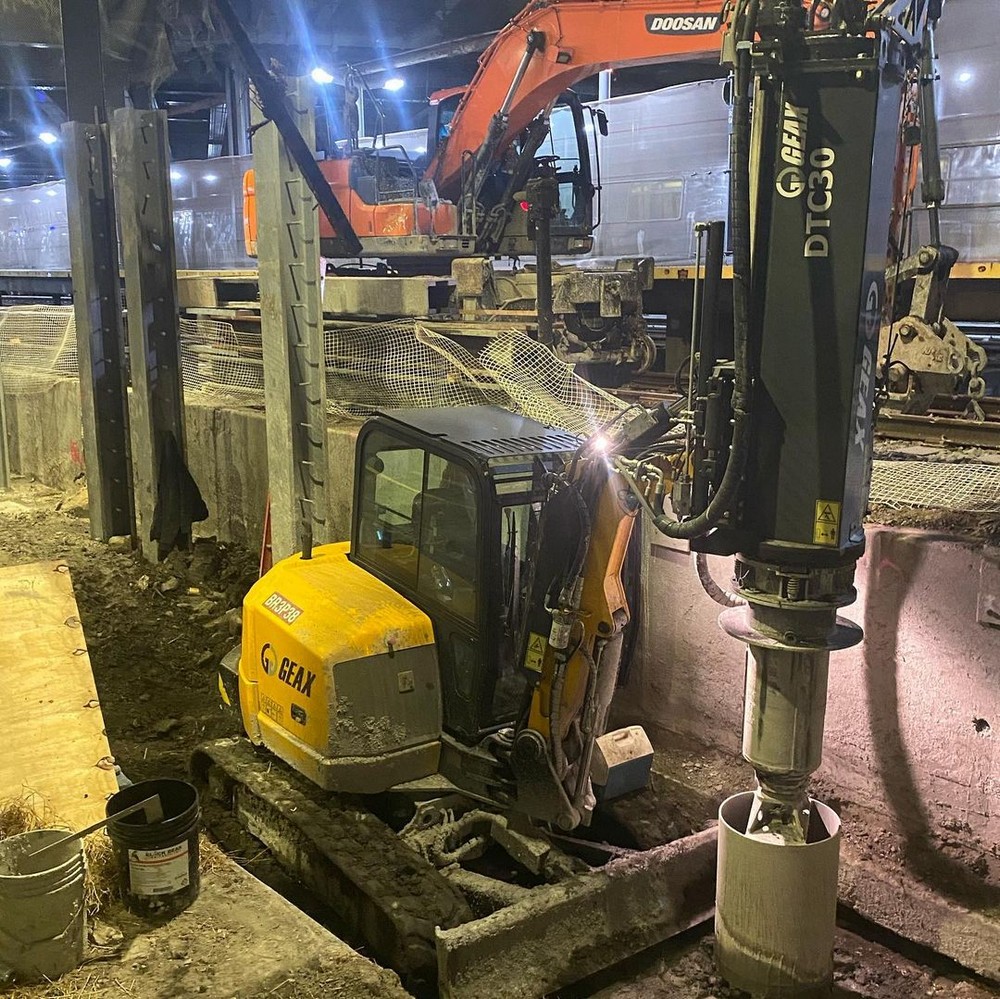

GEAX-dtc30
- Share
Year
2024
Manufacturer
Geax
Price
Contact Us For Pricing
Model
DTC30
Condition
New
| Base | |
| Engine power | 36.2 kW – 48.5hp |
| Undercarriage length | 2.500 mm – 8.2 ft |
| Width over tracks | 1.980 mm – 6.5 ft |
| Mast | |
| Forward inclination | >10° |
| Backward inclination | >10° |
| Lateral inclination | ±6.5° |
| Mast vertical stroke | 1.200 mm – 3.95 ft |
| Rotary | |
| Nominal torque | 27 kNm – 19.900 lbf ft |
| Drilling speed (2) | 10 ÷ 45 rpm |
| Winches | |
| Main winch line pull | 35 kN – 7.800 lbf |
| Aux winch line pull | 16 kN – 3.600 lbf |
| Crowd system | |
| Pull down force | 50 kN – 11.240 lbf |
| Extraction force | 75 kN – 16.860 lbf |
| Excavation | |
| Max pile diameter | 800 mm – 32 in |
| Max pile depth | 16 m – 52.5 ft |
| Min working headroom | 4.340 mm – 14.2 ft |
| Transport | |
| Length | 5.200 mm – 17 ft |
| Width | 1.980 mm – 6.5 ft |
| Height | 2.550 mm – 8.4 ft |
| Weight | 9.500 kg – 20.950 lb |
