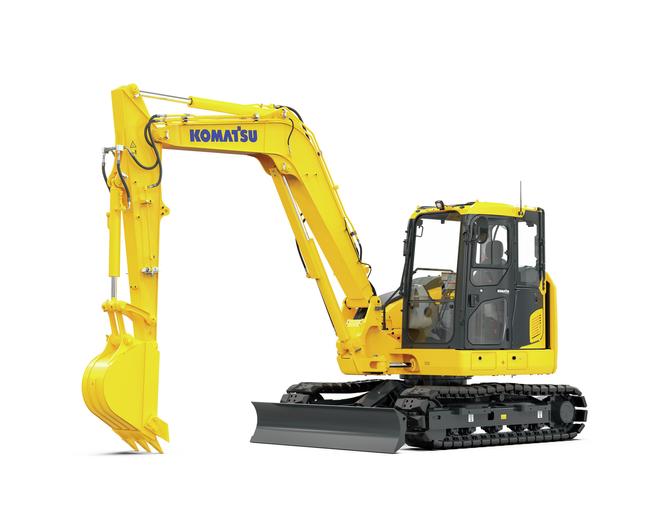

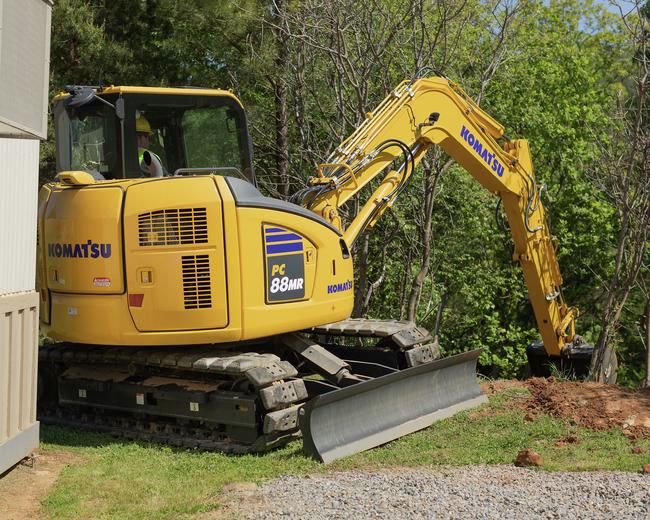

KOMATSU PC88MR-11
- Share
2024
Komastu
PC88MR-11
New
Ontario
Compact design works in confined areas
Accepts a wide range of attachments
Easy to transport
Uses up to 13% less fuel than prior model
Engine
| Model | Komatsu SAA3D95E-1* |
| Type | Water-cooled, 4-cycle, direct injection |
| Aspiration | Turbocharged, aftercooled, cooled EGR |
| Number of Cylinders | 3 |
| Bore | 3.74 in |
| Stroke | 4.52 in |
| Piston displacement | 149.5 in3 |
| Horsepower @ 1,900 rpm: | |
| SAE J1995 / Gross | 68.0 HP |
| ISO 9249 / SAE J1349 / Net | 67.9 HP |
| Rated rpm | 1,850 |
| Fan drive method for radiator cooling | Mechanical with viscous fan clutch |
| Governor | All-speed control, electronic |
*EPA Tier 4 Final emissions certified
Hydraulics
HydrauMind (Hydraulic Mechanical Intelligence New Design) system, closed-center system with load-sensing valves and pressure-compensated valves
| Number of selectable working modes | 6 |
| Main pumps: | |
| Pumps for | Boom, arm, bucket, swing, and travel circuits |
| Type | Variable displacement, axial piston |
| Maximum flow | 42.2 gpm |
| Pumps for | Blade |
| Type | Fixed displacement gear |
| Maximum flow | 17.0 gpm |
| Hydraulic motors: | |
| Travel | 2 x piston motor with parking brake |
| Swing | 1 x axial piston motor with swing holding brake |
| Relief valve setting: | |
| Implement circuits | 3,844 psi |
| Travel circuits | 3,844 psi |
| Swing circuit | 3,060 psi |
| Pilot circuit | 464 psi |
| Blade circuit (Raise) | 1,842 psi |
| Blade circuit (Lower) | 3,060 psi |
| Hydraulic cylinders (Number of cylinders): | bore x stroke x rod |
| Boom (2) | 4.53 x 38.9 x 2.56 in |
| Arm (1) | 3.9 x 33.9 x 2.36 in |
| Bucket (1) | 3.54 x 27.95 x 2.17 in |
| Swing (1) | 4.72 x 25.12 x 2.36 in |
| Blade (1) | 5.12 x 7.87 x 2.56 in |
| Auxiliary hydraulics: | |
| Two-way | 36.5 gpm |
| Relief | 3,830 psi |
| One-way | 21.1 gpm |
| Relief in breaker mode | 2,490 psi |
Drives and Brakes
| Steering control | Two levers with pedals |
| Drive method | Hydrostatic |
| Maximum drawbar pull | 15,309 lbf. |
| Maximum travel speed: | |
| High | 3.1 mph |
| Low | 1.9 mph |
| Service brake | Hydraulic lock |
| Parking brake | Mechanical discs |
Swing System
| Driven by | Hydraulic motor |
| Swing reduction | Planetary gear |
| Swing circle lubrication | Grease-bathed |
| Swing lock | Mechanical disc brake |
| Swing speed | 10 rpm |
Undercarriage
| Center frame | X-frame leg |
| Track frame | Box-section |
| Track type | Sealed |
| Track adjuster | Hydraulic |
| Number of shoes | 39 each side |
| Number of carrier rollers | 1 each side |
| Number of track rollers | 5 each side |
Coolant & Lubricant Capacity (Refilling)
| Fuel tank | 33.0 US gal |
| Radiator | 4.8 US gal |
| Engine | 2.7 US gal |
| Final drive, each side | 0.29 US gal |
| Swing drive | 0.74 US gal |
| Hydraulic tank | 14.8 US gal |
Operating Weight (Approximate)
Operating weight includes 11 ft. 2 in one-piece boom, 6 ft. 11 in arm, ISO 7451 heaped 0.26 yd3 bucket, blade, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment.
| Track Shoes | Operating Weight | Ground Pressure |
| Road liner 18 in | 19,224 lbs. | 5.54 psi |
| Triple grouser 18 in | 18,916 lbs. | 5.54 psi |
| Triple grouser 24 in | 19,290 lbs. | 4.26 psi |
| Rubber shoe 18 in | 18,739 lbs. | 5.41 psi |
ENGINE:
- Komatsu SAA3D95E-1
- Auto deceleration
- Air cleaner, double element with auto dust evacuator
- B20 Biodiesel compatible*
- Cooling system viscous fan clutch, suction type
- Cooling system with expansion tank
- Engine oil-pan drain cock
- Variable flow turbocharger
- Komatsu Diesel Oxidation Catalyst (KDOC)
ELECTRICAL SYSTEM:
- Alternator, 24 V/60 A
- Batteries, 2 x 12 V/55 Ah
- Battery disconnect switch
- Lock out/tag out provisioned
- Starting motor 24 V/4.5 kW
GUARDS AND COVERS:
- Fan guard
- Pump/engine partition cover
- Diesel ground level fuel fill and hydraulic tank fill cap are under lockable side covers
- Car body bottom guards
OPERATOR ENVIRONMENT:
- 12 V x 2 power supply
- Attachment flow switching through monitor
- Auto climate control
- Auto idle shutdown
- Cab includes: antenna, multifunction audio with USB and Bluetooth wireless technology, floormat,intermittent front windshield wiper and washer, large ceiling hatch, pull-up front window, removable lower windshield
- Handrails
- Komtrax 5.0 (cellular 4G system)
- LED working light on boom
- LED working light on cab
- Lock lever auto lock function
- Monitor panel
- Operator identification function
- Rearview mirrors (LH, rear)
- Rearview monitoring system
- ROPS cab (ISO 12117-2)
- Seat belt, 3.1"
- Suspension seat
- Swing holding brake
- Travel alarm
- Travel Hi/Lo switch on blade control lever
HYDRAULIC SYSTEM:
- Dual stage relief valve
- Proportional Pilot Joystick Control
- Hydraulic control unit-1 additional actuator
- One-way/two-way auxiliary hydraulic flow
- Operation pattern change-over valve (two-way, ISO/BH)
- One-variable piston pump and one gear pump
- Auxiliary circuit return filter and accumulator
- Automatic swing brake
- Automatic load sensing two speed travel
WORK EQUIPMENT:
- Blade 7'7" (welded cutting edge type)
- Counterweight, 1,775 lbs.
UNDERCARRIAGE:
- Triple grouser shoe, 18"
*Up to 20% blended biodiesel fuel and paraffine fuel can be used. Please consult your Komatsu distributor for detail.
GUARDS AND COVERS:
- Bolt-on top guard (operator protective guards level 2)
- Cab front guard
— Full height front window mesh guard (Level 1)
WORK EQUIPMENT:
- Boom,
— 11'2" swing type - Arm,
— 6'11" arm assembly with provision for hydraulic thumb - Blade,
— 8' 1" wide blade (requires 24" shoes)
UNDERCARRIAGE:
- Shoes:
— 18" Road Liner shoes
— 24" Triple grouser shoes - Rubber belt track:
— 18"
Features and benefits

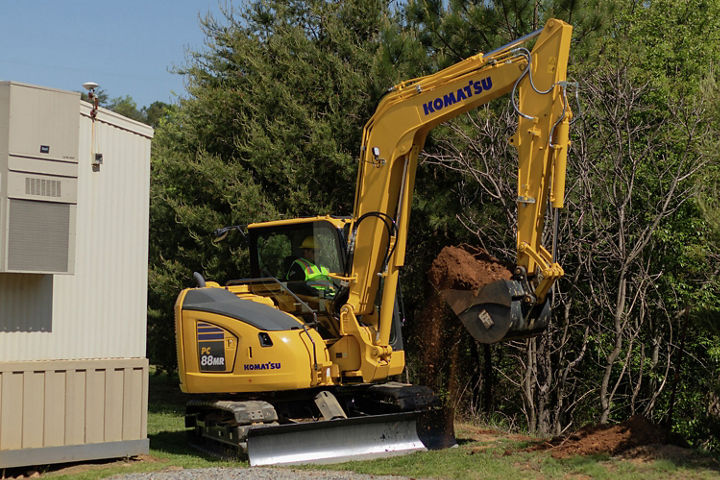

Compact design
For working in tight areas, a compact short tail swing offers maneuverability in more confined areas than a conventional excavator, such as in a single lane of traffic. The conventional boom design has a greater raising angle to reduce the front bucket swing radius.

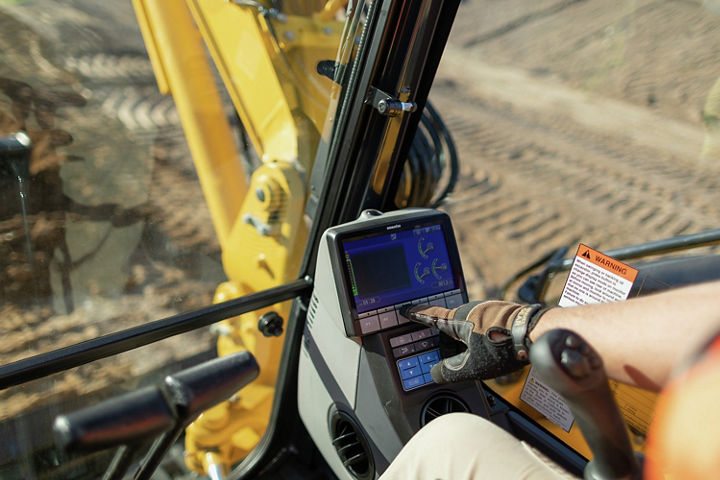

Fast cycles and custom modes
Faster boom up/swing speed, combined with responsive quick arm speed, makes excavating and leveling work easier and more efficient over previous models. Six working modes let you tailor the machine to the tasks required, whether it be for performance or fuel savings.

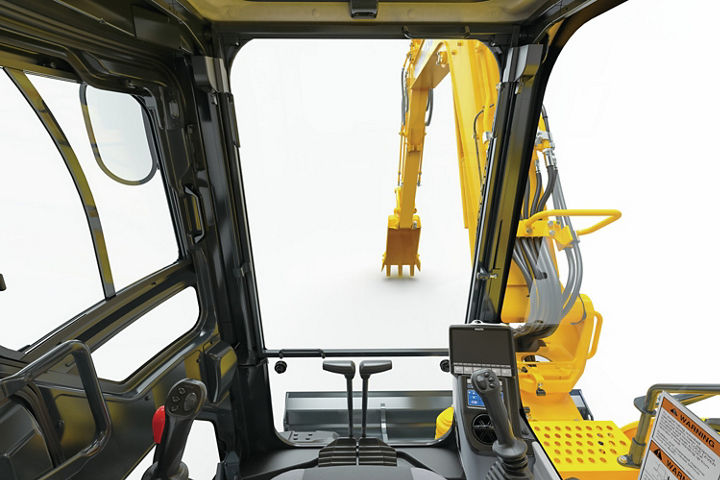

Versatility and efficiency come standard
Standard high flow auxiliary hydraulics with proportional joysticks allows you incredible job versatility while providing precise attachment control. Standard grading blade with new moldboard profile improves backfilling and light grading efficiency over previous models.
Maximum operator comfort
Operators work comfortably in a quiet, climate-controlled cab featuring air suspension seat, Bluetooth radio, and high-resolution monitor with rearview camera. LED lights provide excellent vision at night. Sliding cab door makes entry and exit easier in confined spaces.

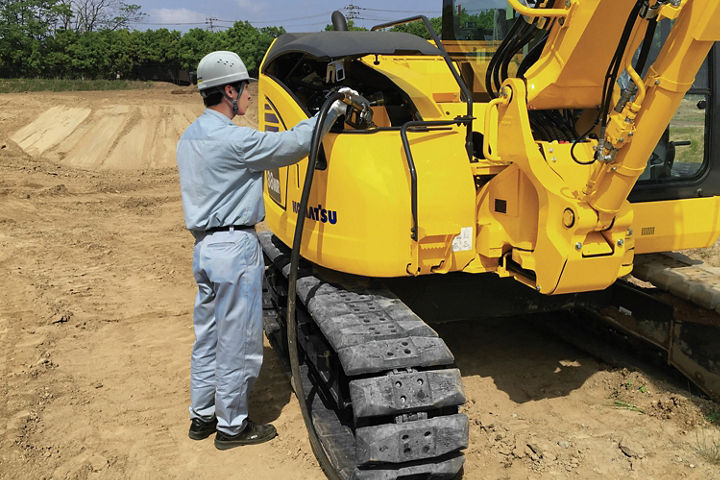

Fuel efficient, low-cost power
The new high-efficiency power package and viscous fan clutch work together to lower overall fuel consumption up to 13%*. A smart, simplified catalytic system removes soot without a diesel particulate filter, meaning lower cost of ownership and less maintenance.

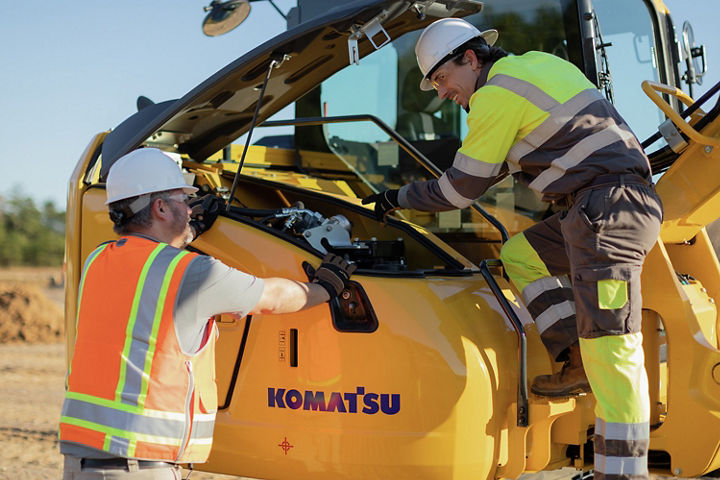

Quick and easy maintenance
Periodic maintenance is more accessible and efficient with large service access doors and grouped service points with ground-level access.
