KOMATSU WA600-8
- Share
2024
WA600-8
New
A powerful, fuel-efficient wheel loader that is easy to operate
High breakout force makes this wheel loader ideal for tough digging applications. A quiet cab and the advanced joystick steering system enhance operator comfort.
- Powerful
- Fuel-efficient
- Comfortable and easy to operate
- Onboard diagnostics
Engine
| Model | Komatsu SAA6D170E-7* |
| Type | Water-cooled, 4-cycle |
| Aspiration | Komatsu variable geometry, turbo-charged, after-cooled, cooled EGR |
| Number of cylinders | 6 |
| Bore x stroke | 6.69 x 6.69 in |
| Piston displacement | 1,413 in³ |
| Governor | All-speed, electronic |
| Horsepower: | |
| SAEJ1995 - Gross | 530 HP |
| ISO 9249 / SAEJ1349 - Net | 529 HP |
| Rated rpm | 1,800 rpm |
| Fan drive method for radiator cooling | Hydraulic |
| Fuel system | Direct injection |
| Lubrication system: | |
| Method | Gear pump, force lubrication |
| Filter | Full-flow type |
| Air cleaner | Dry type with double elements and dust evacuator, plus dust indicator |
| *EPA Tier 4 Final emissions certified |
Transmission
Torque converter: three-elements, one-stage, two-phase
Transmission: Automatic full-powershift, planetary type
| Travel speed Measured with 35/65-33 tires: |
Forward* | Reverse* |
| 1st | 4.2 mph | 4.5 mph |
| 2nd | 7.3 mph (7.7 mph) |
8.0 mph (8.4 mph) |
| 3rd | 12.6 mph (13.5 mph) |
13.7 mph |
| 4th |
21.0 mph |
23.0 mph |
*P-mode
( ): Lock-up clutch ON
Torque converter: three-elements, one-stage, two-phase
Transmission: Automatic full-powershift, planetary type
| Travel speed Measured with 35/65-33 tires: |
Forward* | Reverse* |
| 1st | 4.2 mph | 4.5 mph |
| 2nd | 7.3 mph (7.7 mph) |
8.0 mph (8.4 mph) |
| 3rd | 12.6 mph (13.5 mph) |
13.7 mph |
| 4th |
21.0 mph |
23.0 mph |
*P-mode
( ): Lock-up clutch ON
Axles and Final Drives
| Drive system | Four-wheel drive |
| Front | Fixed, full-floating |
| Rear | Center-pin support, full-floating, 22° total oscillation |
| Reduction gear | Spiral bevel gear |
| Differential gear | Conventional type |
| Final reduction gear | Planetary gear, single reduction |
Brakes
| Service brakes: | Hydraulically actuated, wet multiple-disc brakes actuate on four wheels |
| Parking brake: | Wet multiple-disc brake |
| Emergency brake | One of dual service brake circuits is commonly used |
Steering System
| Type | Articulated type, full-hydraulic power steering |
| Steering angle | 43° each direction. |
| Minimum turning radius at the center of outside tire | 23 ft. 3 in |
Hydraulic System
| Steering system: | |
| Hydraulic pump | Piston pump |
| Capacity (at rated rpm) | 43.1 US gpm |
| Relief valve setting | 4,980 psi |
| Hydraulic cylinders: | |
| Type | Double-acting, piston type |
| Number of cylinders | 2 |
| Bore x stroke | 4.5 x 20 in |
| Loader control: | |
| Hydraulic pump | Piston pump |
| Capacity at rated rpm | 63.1 + 63.1 US gpm |
| Relief valve setting | 4,980 psi |
| Hydraulic cylinders: | |
| Type | Double-acting, piston type |
| Number of cylinders: | Bore x Stroke |
| Boom cylinder / 2 | 7.9 x 42 in |
| Bucket cylinder / 1 | 8.9 x 30.6 in |
| Control valve | 2-spool type |
| Control positions: | |
| Boom | Raise, hold, lower, and float |
| Bucket | Tilt-back, hold, and dump |
| Hydraulic cycle time (rated load in bucket) | |
| Raise | 8.7 s |
| Dump | 2.3 s |
| Lower (Empty) | 4.1 s |
Service Refill Capacities
| Cooling system | 39.6 US gal |
| Fuel tank | 189.7 US gal |
| Engine | 22.7 US gal |
| Hydraulic system | 117.0 US gal |
| Axle (front) | 48.9 US gal |
| Axle (rear) | 51.0 US gal |
| Torque converter and transmission | 20.6 US gal |
| DEF tank | 10.5 US gal |
ENGINE
- Air cleaner, double element with dust indicator
- Alternator, 24 V/140 A
- Batteries, large capacity, 2 x 12 V/200 Ah
- Engine, Komatsu SAA6D170E-7
- KDPF, SCR
- Starting motor, 24 V x 2/11.0 kW
CAB
- Two x DC12V electrical outlets
- Advanced joystick steering system
- Auto air conditioner/heater
- AM/FM radio with AUX input jack
- Ashtray
- Cigarette lighter
- Color multi-monitor
- Cup holder
- Electronic pilot control fingertip control
- Floor mat
- Front wiper (with washer and intermittent)
- Rear defroster (electric)
- Rear window washer and wiper
- ROPS/FOPS (ISO 3471/ISO 3449) cab
- Seat, suspension type with reclining
- Seat belt (two-point)
- Space for lunch box
- Starter receptacle
- Sun visor
LIGHTING SYSTEM
- Access stair lamp, LH side
- Back-up lights, LED
- Directional signal
- Hazard lamps
- Head lamps, LH and RH side
- Front work lamps, LH and RH side
- Rear work lamps, LH and RH side
- Stop and tail lamps, LED and turn signal lamps
SAFETY EQUIPMENT
- Back-up alarm
- Engine shutdown secondary switch
- Hand rails for platform
- Horn, electric
- Parking brake, electric
- Rear view mirrors
- Rear view monitoring system
- Service brakes, wet disc type
TIRES
- 35/65-33-36PR(L-4)
- Large bore tire valves
OTHER
- Two-spool valve for boom and bucket controls
- 3990 mm boom
- Additional counterweight (850 kg)
- Automatic digging system
- Automatic shift transmission
- Battery disconnect switch
- Circuit breaker
- Counterweight, standard
- Ecology guidance, ecology gauge
- Electronically controlled suspension system
- Engine RPM set system
- Engine shut-off system, electric
- Front fenders
- Fuel pre-filter with water separator
- Hydraulic-driven fan with reverse rotation
- Inline filters, steering and hydraulic
- Integrated load meter
- Komatsu auto idle shutdown
- Komatsu SmartLoader Logic
- KOMTRAX with KOMTRAX Plus function and wireless bridge
- Lift cylinders and bucket cylinder
- Lock-up clutch torque converter
- Modulation clutch
- Radiator, modulating core
- Radiator mask, swing out
- Rear access stair with handrail, RH side
- Remote boom positioner, in-cab adjustable
- Remote bucket positioner, in-cab adjustable, three positions
- Transmission, four forward and four reverse
- Vandalism protection kit
- Work equipment shock reduction control
- Three-spool valve with lever and piping
- 3850 mm boom
- Brake cooling system
- Fast-fill fuel system
- Load-and-carry specification
- Power train guard
- Secondary steering (ISO 5010)
- Steering wheel, tiltable, telescopic
- Various bucket options
- Various tire options, radial and bias
Features and benefits

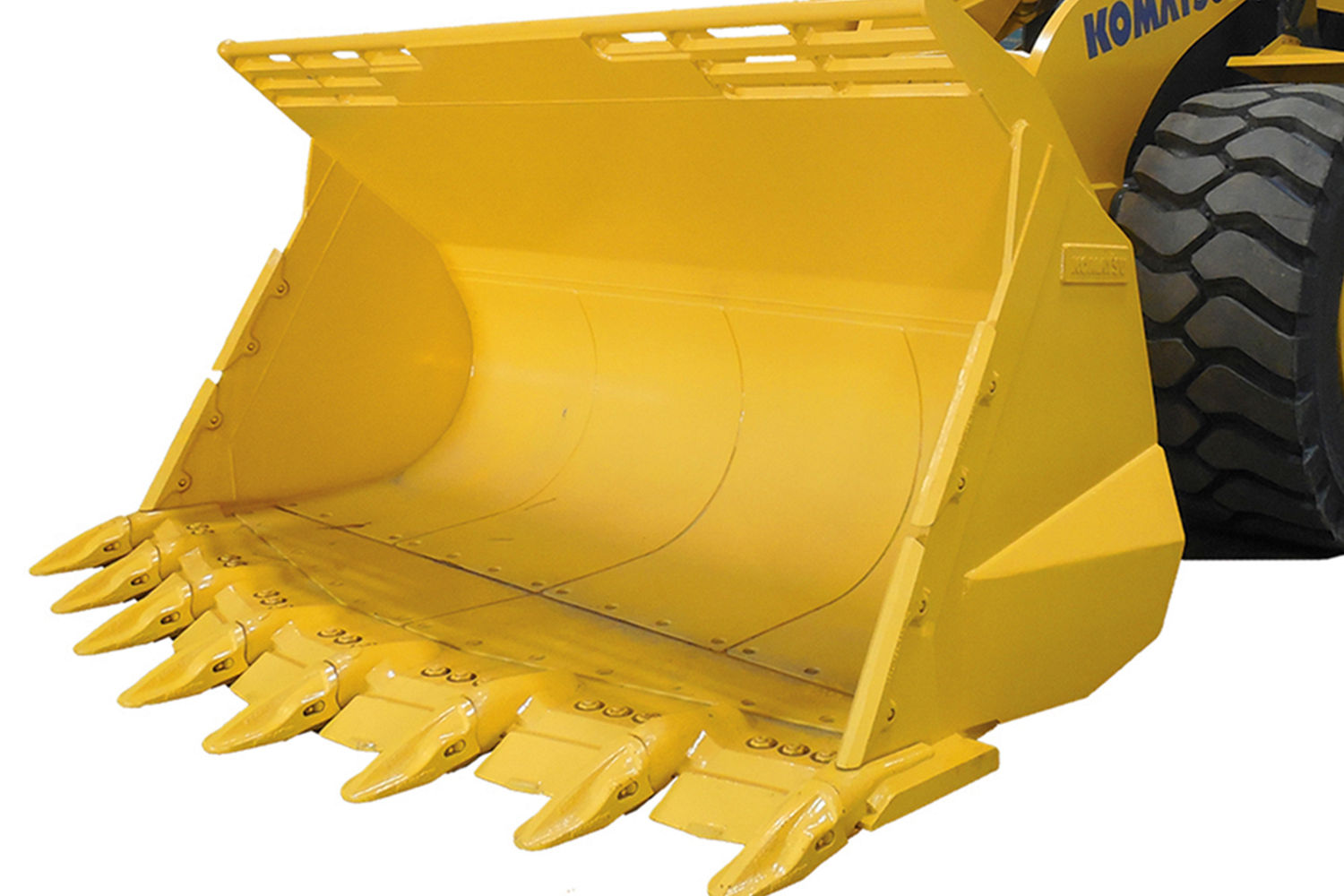

New bucket design
A new bucket design helps make this loader up to 7% more productive.

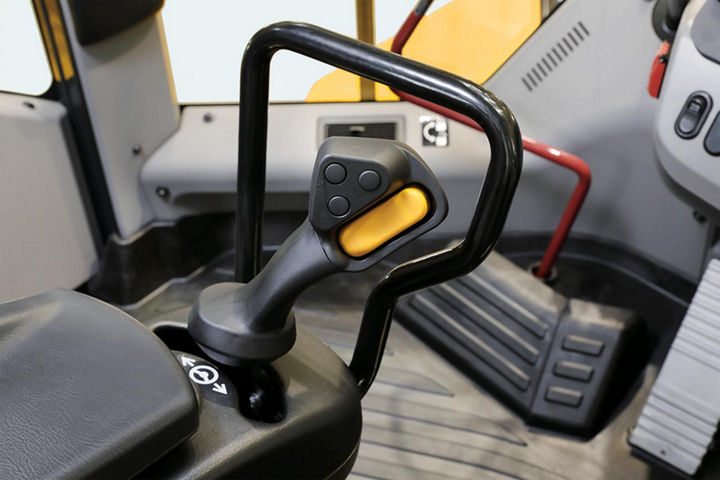

Easy to operate
The Advanced Joystick Steering System (AJSS) and Electronic Pilot Control (EPC) work equipment controls work in tandem to make this wheel loader easy to operate.

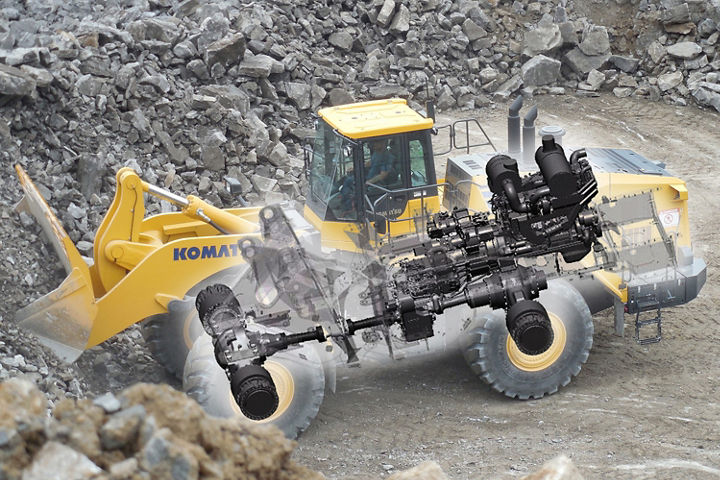

Variable traction control system
Maximum rimpull can be adjusted from 100% to 20% to match ground conditions and reduce tire slippage.

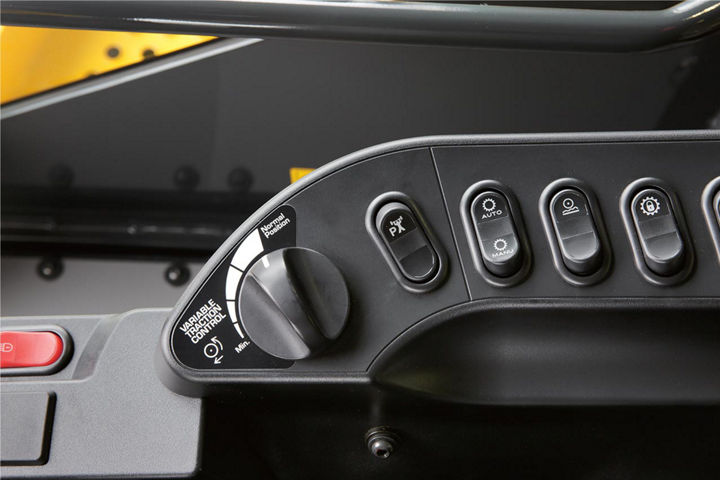

Throttle lock
The engine’s RPM can be set to a constant speed for faster cycle times, while the auto-deceleration feature lowers the engine to low idle when an operator command is not sensed, which can help reduce fuel consumption.

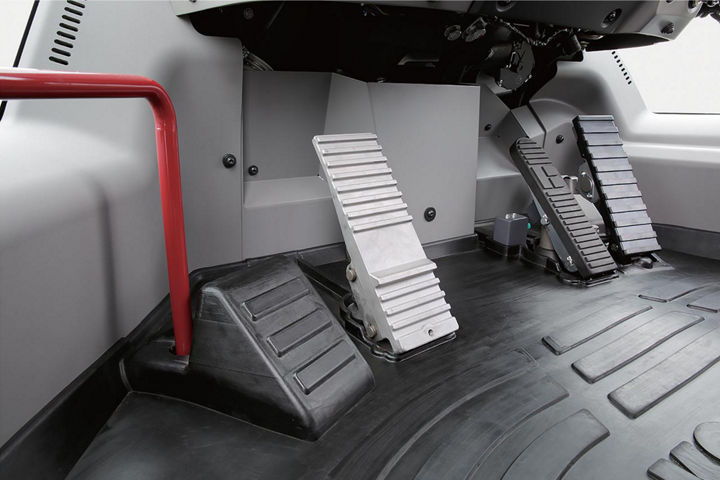

Smooth approaches
The modulation clutch controls the tractive effort with the left brake pedal from 100% to 20% of available rimpull output, enabling smooth approaches and speed reduction when loading haul trucks.

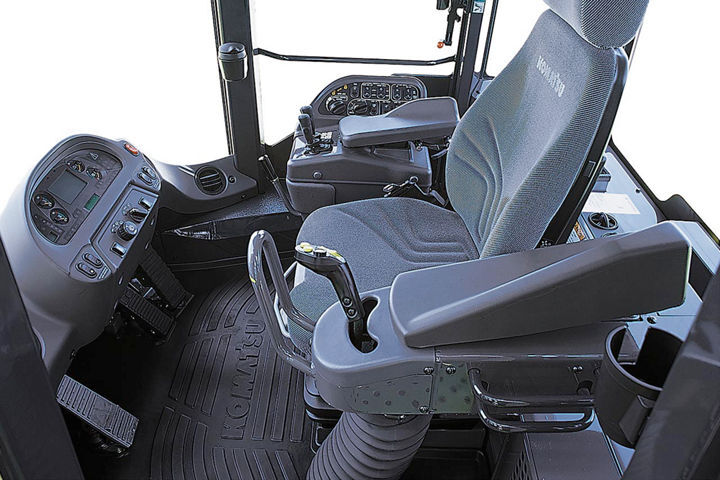

Comfortable
A newly designed, low-noise cab features an air suspension, heated seat that increases operator comfort.

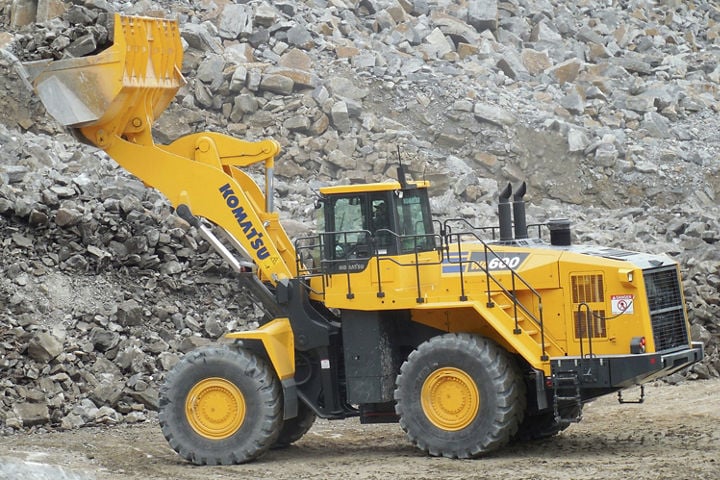

Electronically Controlled Suspension System
An electronically controlled suspension system absorbs shock from the boom which helps reduce operator fatigue and material spillage.

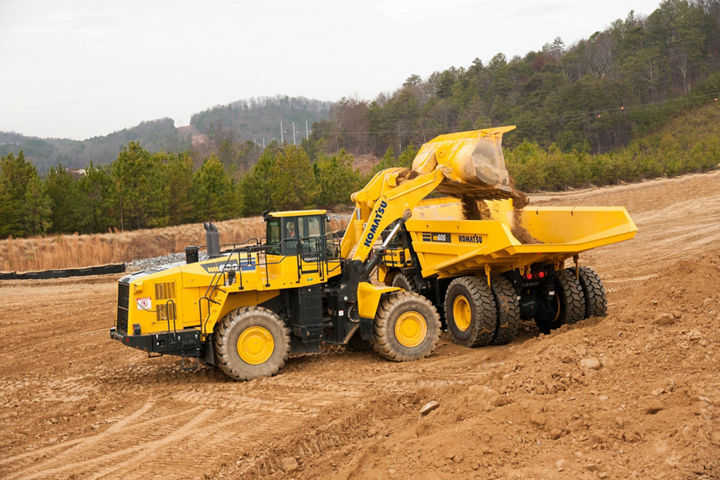

SmartLoader Logic
To reduce fuel consumption, SmartLoader Logic senses the power requirement and matches torque output to application.

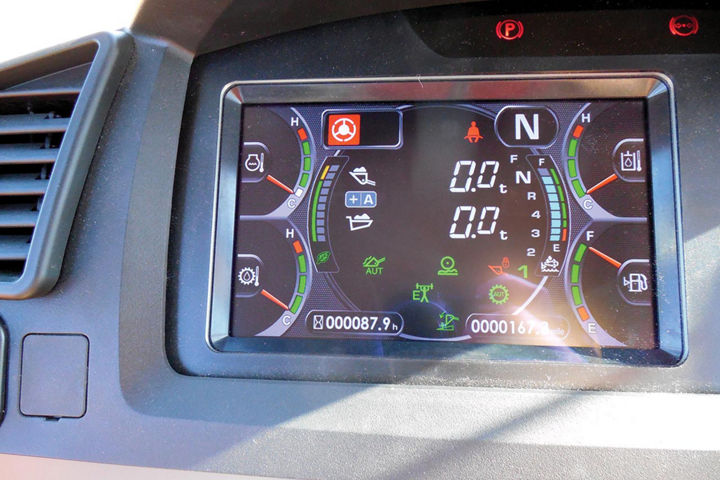

Integrated payload meter
A payload meter displays a variety of data on the cab’s monitor panel. Payload data can also be accessed remotely with Komtrax Plus.

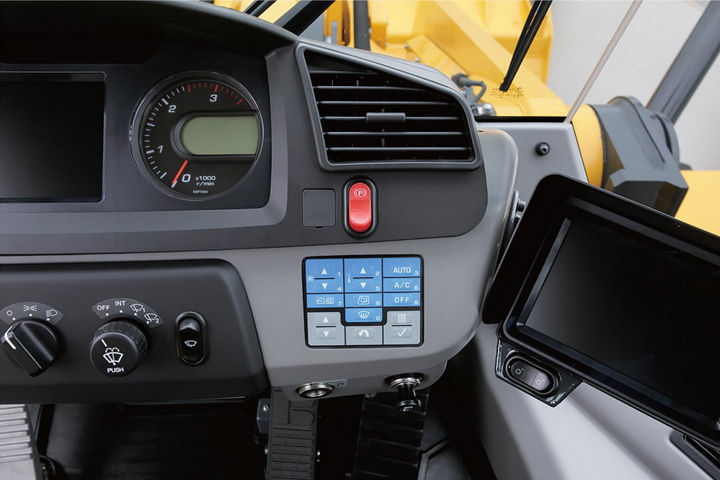

Two operating modes
Dual operating modes allow the operator to select Power for enhanced engine performance or Economy for lower fuel consumption.

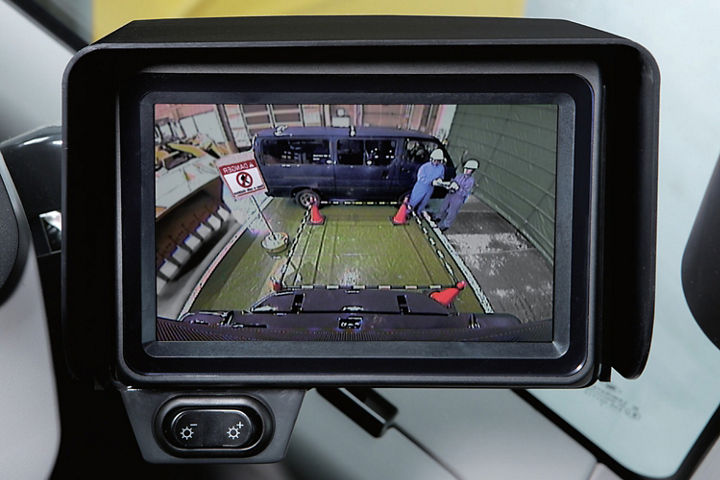

Rearview monitor
A rearview monitoring system features a dedicated color monitor. This monitor can always be on, or only on when the loader moves in reverse.

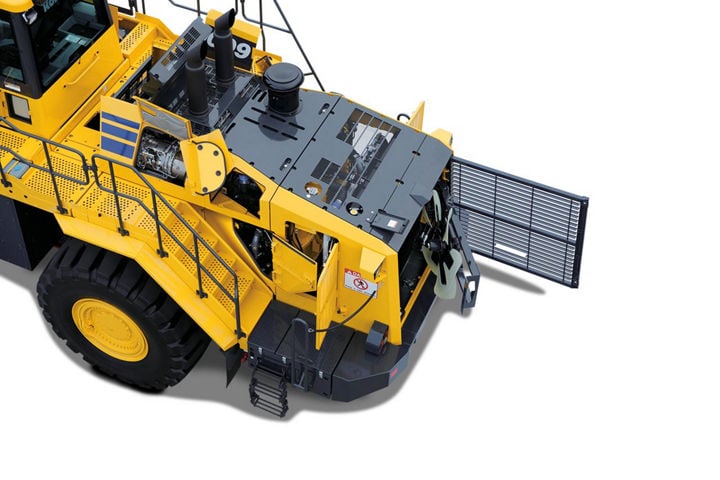

Easy Maintenance
To promote equipment longevity, onboard diagnostics alert you when your wheel loader needs to be serviced. A swing-out, reversible hydraulic fan and a modular radiator core make cleaning and maintenance easy.
