KOMATSU PC490 LC-11
-
- Share
2026
Komastu
PC490 LC-11
New
Ontario
Large high-strength steel castings on the boom, arm and bucket link
Closed-center load-sensing hydraulics for precise, fine control
Large displacement high-efficiency pumps provide optimal attachment flow
Large, spacious, quiet cab featuring standard air suspension seat
Engine
| Model | Komatsu SAA6D125E-7* |
| Type | Water-cooled, 4-cycle, direct injection |
| Aspiration | Komatsu Variable Geometry Turbocharger with air-to-air aftercooled EGR |
| Number of cylinders | 6 |
| Bore | 4.92 in |
| Stroke | 5.91 in |
| Piston displacement | 674 in³ |
| Horsepower | |
| SAE J1995 : Gross | 362 HP |
| ISO 9249/SAE J1349 : Net | 359 HP |
| Rated rpm | 1,900 rpm |
| Governor | All-speed control, electronic. |
| Fan drive method for radiator cooling | Hydraulic |
| *EPA Tier 4 Final emissions certified |
Hydraulics
Type: HydrauMind (Hydraulic Mechanical Intelligence) system, closed-center system with load sensing valve and pressure compensated valves, 6 selectable working modes
| Main pump: | |
| Pumps for | Boom, arm, bucket, swing, and travel circuits |
| Type | Variable displacement axial piston type |
| Maximum flow | 206 US gpm |
| Hydraulic motors: | |
| Travel | 2 x axial piston motor with parking brake |
| Swing | 1 x axial piston motor with swing holding brake |
| Relief valve setting: | |
| Implement circuits | 5,400 psi |
| Travel circuit | 5,400 psi |
| Swing circuit | 4,050 psi |
| Pilot circuit | 470 psi |
| Hydraulic cylinders: | |
| Number of cylinders | Bore x Stroke x Rod Diameter |
| Boom / 2 | 6.3 x 61.8 x 4.3 in |
| Arm / 1 | 7.3 x 71.7 x 4.7 in |
| Bucket / 1 | 6.3 x 50 x 4.3 in |
Drives and Brakes
| Steering control | Two levers with pedals |
| Drive method | Hydrostatic |
| Maximum drawbar pull | 73,880 lbs. |
| Gradeability | 70% |
| Maximum travel speed: (Auto-Shift): | |
| High | 3.4 mph |
| Mid | 2.6 mph |
| Low | 1.9 mph |
| Service brake | Hydraulic lock |
| Parking brake | Mechanical disc brake |
Swing System
| Drive method | Hydrostatic motor |
| Swing reduction | Planetary gear |
| Swing circle lubrication | Grease-bathed |
| Service brake | Hydraulic lock |
| Holding brake/Swing lock | Mechanical disc brake |
| Swing speed | 9.0 rpm |
| Swing torque | 97,024 ft.-lbs. |
Undercarriage
| Center frame | X-frame |
| Track frame | Box-section |
| Track type | Sealed |
| Track adjuster | Hydraulic |
| Number of shoes | 49 each side |
| Number of carrier rollers | 2 each side |
| Number of track rollers | 8 each side |
Coolant & Lubricant Capacity (Refilling)
| Fuel tank | 172 US gal |
| Coolant | 12.4 US gal |
| Engine | 10.0 US gal |
| Final drive, each side | 2.9 US gal |
| Swing drive | 5.3 US gal |
| Hydraulic tank | 65.5 US gal |
| Diesel Exhaust Fluid (DEF) tank | 10.3 US gal |
Operating Weight (Approximate)
Operating weight includes 23 ft. 2 in one-piece HD boom, 11 ft. 1 in arm, SAE heaped 2.94 yd3 bucket, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment.
| Fixed Gauge: | |
| Shoes | 28 in |
| Operating Weight | 105,670 lbs. |
| Ground Pressure | 10.38 psi |
| Shoes | 31.5' in |
| Operating Weight: | 106,770 lbs. |
| Ground Pressure | 9.20 psi |
| Shoes | 35.5 in |
| Operating Weight: | 107,850 lbs. |
| Ground Pressure | 8.32 psi |
| Variable Gauge: | |
| Shoes | 28 in |
| Operating Weight | 108,040 lbs. |
| Ground Pressure | 10.61 psi |
| Shoes | 31.5 in |
| Operating Weight: | 109,140 lbs. |
| Ground Pressure | 9.40 psi |
| Shoes | 35.5 in |
| Operating Weight: | 110,220 lbs. |
| Ground Pressure | 8.50 psi |
- 3 speed travel with auto shift
- Alternator, 90 Ampere, 24V
- AM/FM radio
- Automatic engine warm-up system
- Automatic climate control/air conditioner/heater/defroster
- Auto idle
- Auto idle shut down, programmable
- Auxiliary input (3.5mm jack)
- Batteries, large capacity (2 x 12V)
- Battery master disconnect switch
- Boom holding valves
- Carrier rollers, (2 each side)
- Converter, (2) x 12V
- Counterweight, 1,105 lb
- Dry type air cleaner, double element
- Electric horn
- Engine, Komatsu SAA6D125E-7
- Engine coolant to -13°F
- EMMS monitoring system
- Engine overheat prevention system
- Extended work equipment grease interval
- Fan guard structure
- Fuel priming pump, 24V
- Fuel system pre-filter 10 micron
- Grease sealed track chain
- High back air suspension seat, with heat
- Hydraulic cooling fan (reversible)
- Hydraulic track adjusters
- KOMTRAX® Level 5.0
- Large LCD color monitor, high resolution
- Lock lever
- Mirrors, (LH and RH)
- Operator Protective Top Guard (OPG), Level 1
- Operator identification system
- Pattern change valve (ISO to BH control)
- Power maximizing system
- PPC hydraulic control system
- Pump/engine room partition cover
- Radiator and oil cooler dustproof net
- Rear reflectors
- Rearview monitoring system (1 camera)
- Revolving frame deck guard
- Revolving frame undercovers
- ROPS cab (ISO12117-2)
- Seat belt indicator
- Seat belt, retractable, 3"
- Secondary engine shutoff switch
- Service valve
- Skylight
- Slip resistant foot plates
- Starter motor, 11.0kW/24V x 1
- Suction fan
- Thermal and fan guards
- Track frame swivel guard
- Track roller guards, center section
- Track rollers, 8 (each side)
- Track shoes, triple grouser, 28"
- Travel alarm
- Two boom mode settings
- Working lights, 2 (boom and RH front)
- Working mode selection system
Arms
- 9'6" arm assembly
- 11'1" HD arm assembly
- 11'1" HD arm assembly with piping
- 11'1" SD arm assembly
- 11'1" SD arm assembly with piping
- 13'1" arm assembly
- 15'9" arm assembly
Booms
- 23'2" HD boom assembly
- 23'2" HD boom assembly with piping
Cab guards
- Lower front window guard
- Full front guard, OPG Level 1
- Full front guard, OPG Level 2
- Bolt-on top guard, OPG Level 2
Other
- Counterweight removal device with 19,180 lbs. counterweight
- Counterweight, 25,353 lbs. with revolving frame reinforcement for use with super long fronts only
- High altitude arrangement
- High pressure in-line hydraulic filters
- Hydraulic control unit, 1 actuator
- Proportional control handles
- Rain visor
- Revolving frame undercovers, heavy duty
- Revolving frame undercovers, severe duty
- Sun visor
- Straight travel pedal
- Track roller guards, full length
- Track shoes, triple grouser, 31.5"
- Track shoes, triple grouser, 35.5"
- Working lights, front, two additional cab mounted
- Variable track gauge
Features and benefits
Large displacement high efficiency pump
Large displacement hydraulic implement pumps provide high flow output at lower engine RPM, operation at the most efficient engine speed.
Closed-center load-sensing hydraulic system
Smooth operation, quick cycle times, great multi-function, while lowering fuel consumption from closed-center load-sensing hydraulic system.
Built for strength
Equipment designed for long-term durability with high resistance to bending and torsional stress. Booms and arms are constructed with thick plates of high tensile strength streel and designed with large cross-sectional areas.
Cleaner emissions
A heavy-duty aftertreatment system that combines a Komatsu Diesel Particulate Filter (KDPF) and selective catalytic reduction (SCR). The system injects the correct amount of diesel exhaust fluid at the proper rate, decomposing nitrogen oxide.
Easy access
Engine oil check and filter locations integrated into one side to allow easier maintenance access.
Advanced ergonomic design
Wide spacious cab includes a heated air suspension seat with reclining backrest. Seat height and position are easily adjusted using a pull-up lever. Armrest position easily adjusted with the console.
Information at your fingertips
Updated, large, high-resolution LCD color monitor to ease accurate and smooth work. Key machine information displayed in user-friendly interface, rearview camera and DEF level gauge display added to default main screen.
Rollover protection
A ROPS cab that conforms to ISO 12117-2 comes as standard equipment. It also satisfies requirements for level 1 operator protective guard (OPG) and top guard (ISO 10262).
Multi-operator productivity
An operator identification ID can be set up for each operator and used to manage operation information of individual machines using Komtrax data. Data can analyze operation status by operator and by machine.
Reduce fuel consumption
Auto idle shutdown automatically shuts the engine down after idling for a set period to reduce unnecessary fuel consumption and exhaust emissions. Time before engine is shutdown can be programmed from 5 to 60 minutes.
Designed for durability
Large heavy-duty revolving frame guards and swivel guard help protect vital components from damage and debris build-up.

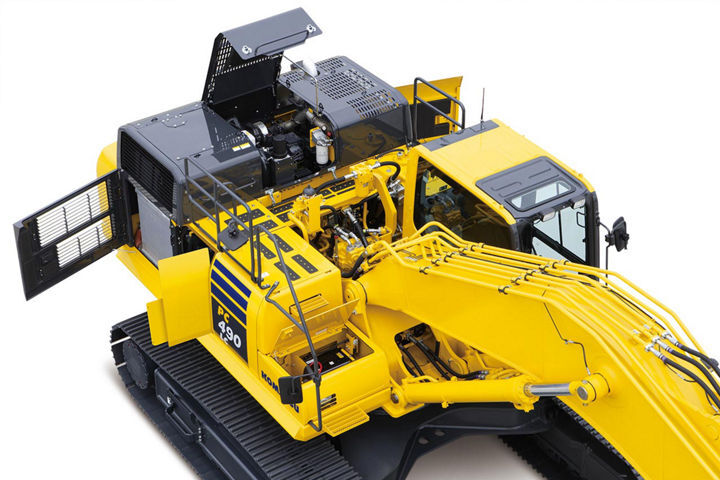

Ease of maintenance and serviceability
Provide a convenient and more secure work area in front of the engine. A new step provides easier access for filling the AdBlue/DEF tank.
