KOMATSU PC360 LC-11
- Share
2024
Komastu
PC360 LC-11
New
Ontario
Large high-strength steel castings on the boom, arm and bucket link
Closed-center load-sensing hydraulics for precise, fine control
Large displacement high-efficiency pumps provide optimal attachment flow
Large, spacious, quiet cab featuring standard air suspension seat
Engine
| Model | Komatsu SAA6D114E-6* |
| Type | Water-cooled, 4-cycle, direct injection |
| Aspiration | Komatsu Variable Geometry Turbocharger with air-to-air aftercooler and EGR |
| Number of cylinders | 6 |
| Bore | 4.49 in |
| Stroke | 5.69 in |
| Piston displacement | 540 in³ |
| Horsepower: | |
| SAE J1995 - Gross | 271 HP |
| ISO 9249/SAE J1349 - Net | 257 HP |
| Rated rpm | 1,950 |
| Governor | All-speed control, electronic. |
| Fan drive method for radiator cooling | Mechanical |
| *EPA Tier 4 Final emissions certified |
Hydraulics
Type: HydrauMind (Hydraulic Mechanical Intelligence) system, closed-center system with load sensing valve and pressure compensated valves, 6 selectable working modes
| Main pump: | |
| Pumps for | Boom, arm, bucket, swing, and travel circuits |
| Type | Variable displacement piston type |
| Maximum flow | 141 US gpm |
| Supply for control circuit | Self-reducing valve |
| Hydraulic motors: | |
| Travel | 2 x axial piston motor with parking brake |
| Swing | 1 x axial piston motor with swing holding brake |
| Relief valve setting: | |
| Implement circuits | 5,400 psi |
| Travel circuit | 5,400 psi |
| Swing circuit | 4,050 psi |
| Pilot circuit | 470 psi |
| Hydraulic cylinders: | |
| Number of cylinders | Bore x Stroke x Rod Diameter |
| Boom / 2 | 5.5 x 58.3 x 3.9 in |
| Arm / 1 | 6.3 x 71.9 x 4.3 in |
| Bucket / 1 - for 10'5" and 13'2" Arms | 5.5 x 50.6 x 3.9 in |
| Bucket / 1 - for 8'4" Arm | 5.9 x 50.6 x 4.3 in |
Drives and Brakes
| Steering control | Two levers with pedals |
| Drive method | Hydrostatic |
| Maximum drawbar pull | 65,191 lbs. |
| Gradeability | 70%, 35° |
| Maximum travel speed: (Auto-Shift) | |
| High | 3.4 mph |
| Mid | 2.8 mph |
| Low | 2.0 mph |
| Service brake | Hydraulic lock |
| Parking brake | Mechanical disc brake |
Swing System
| Drive method | Hydrostatic motor |
| Swing reduction | Planetary gear |
| Swing circle lubrication | Grease-bathed |
| Service brake | Hydraulic lock |
| Holding brake/Swing lock | Mechanical disc brake |
| Swing speed | 9.5 rpm |
| Swing torque | 82,313 ft.-lbs. |
Undercarriage
| Center frame | X-frame |
| Track frame | Box-section |
| Track type | Sealed |
| Track adjuster | Hydraulic |
| Number of shoes | 48 each side |
| Number of carrier rollers | 2 each side |
| Number of track rollers | 8 each side |
Coolant & Lubricant Capacity (Refilling)
| Fuel tank | 159.8 US gal |
| Coolant | 9.7 US gal |
| Engine | 9.2 US gal |
| Final drive, each side | 2.4 US gal |
| Swing drive | 3.6 US gal |
| Hydraulic tank | 49.7 US gal |
| Diesel Exhaust Fluid (DEF) tank | 10.3 US gal |
Operating Weight (Approximate)
Operating weight includes 21 ft. 3 in one-piece HD boom, 10 ft. 5 in arm, SAE heaped 2.53 yd3 bucket, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment.
| Shoes | 28 in |
| Operating Weight | 78,645 lbs. |
| Ground Pressure | 8.35 psi |
| Shoes | 31.5 in |
| Operating Weight: | 79,483 lbs. |
| Ground Pressure | 7.44 psi |
| Shoes | 33.5 in |
| Operating Weight: | 80,320 lbs. |
| Ground Pressure | 7.03 psi |
Cab
- ROPS cab (ISO12117-2)
- High back air suspension seat, with heat
- Operator Protective Guard (OPG) Level 1 top guard
- Large LCD high resolution color monitor
- Automatic climate control
- Retractable seat belt (76 mm width) with indicator
- 12V accessory outlet
- 24V accessory outlet
- Rearview mirrors, right hand and left hand side
- Rearview monitoring system (1 camera)
- Travel alarm
- Operator identification system
- Hydraulic lock lever
- Skylight
Engine
- Komatsu SAA6D114E-6 Tier 4 Final
- Dry type air cleaner, double element
- Fuel pre-filter with water separator
- Fuel high efficiency filter
- Automatic engine warm up system
- Programmable auto-idle shut down
- Overheat prevention system
- Turbocharger protection system
Hydraulic controls
- Pattern change control valve (ISO to BH control)
- Working mode selection system (6 modes)
- Dual pump, Closed Center Load Sensing System (CLSS)
- Auto-deceleration system
- Power max system
- Boom and arm holding valves
- Two boom pressure mode settings
Technology
- Komtrax level 5.0
Electrical system
- Batteries, large capacity (2 x 12Volt)
- Battery master disconnect switch with lockout tagout
- Alternator (90Amp, 24Volt)
- Starter motor (11 kW)
- Secondary engine shut off switch
- Working lights (1 Front RH side / 1 boom LH side)
Booms and arms
- 6500 mm (21'3") HD boom assembly
- 3185 mm (10'5") arm assembly
- Boom foot, boom nose, & arm end steel castings
Undercarriage and work equipment
- 850 mm (33.5") triple grouser track shoes
- 8 track / 2 carrier rollers (each side)
- Hydraulic track adjusters (each side)
- Track guiding guards, center section (each side)
- Counterweight, 6920 kg (15,255 lbs.)
- Object handling H-link
Guards and covers
- Revolving frame deck guards
- Revolving frame undercovers
- Track frame swivel guard
- Pump / engine room partition
- Turbocharger exhaust manifold cover
- Dust net for radiator and hydraulic oil cooler
- Slip resistant foot plates
- Tool free access to engine and aftertreatment
- Left and right side hand rails
Drive and brake system
- Three speed travel with auto shift
- Double reduction type final drive
- Triple labyrinth final drive seals
*IMU for auto-tilt control required for operation
**With revolving frame reinforcements, Only available with super long fronts
For a complete list of available attachments, please contact your local Komatsu distributor.
Cab
- Proportional joystick control levers
- Sunvisor
- Rainvisor
- Working lights, two additional cab mounted
- Straight travel pedal
Hydraulic controls
- One way/two way flow hyd control unit
Variable pressure, return filter, & accumulator
Booms and arms
- 6500 mm (21'3") HD boom assembly with +1 attach piping
- 3185 mm (10'5") arm assembly with +1 attach piping
- 4020 mm (13'2) arm assembly
- 4020 mm (13’2) arm assembly with +1 attach piping
Undercarriage and work equipment
- 800 mm (31.5") single grouser track shoes
- 700 mm (28”) triple grouser track shoes
- Track roller guards, full length (each side)
- Counterweight, 7400 kg (16,315 lbs.)**
Guards and covers
- Cab full front guard, OPG Level 1
- Cab full front guard, OPG Level 2
- Cab top guard, OPG Level 2
- Revolving frame undercovers - heavy duty
- Revolving frame undercovers - severe duty
*IMU for auto-tilt control required for operation
**With revolving frame reinforcements, Only available with super long fronts
For a complete list of available attachments, please contact your local Komatsu distributor.
Features and benefits

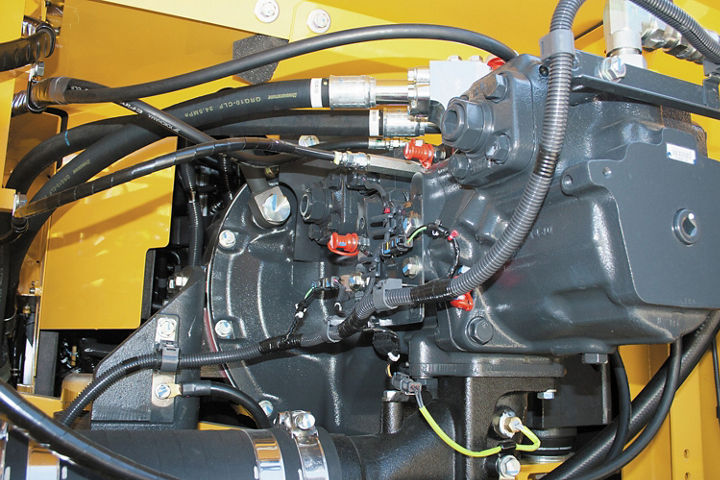

Large displacement high efficiency pump
Large displacement hydraulic implement pumps provide high flow output at lower engine RPM, operation at the most efficient engine speed.
Closed-center load-sensing hydraulic system
Smooth operation, quick cycle times, great multi-function, while lowering fuel consumption from closed-center load-sensing hydraulic system.

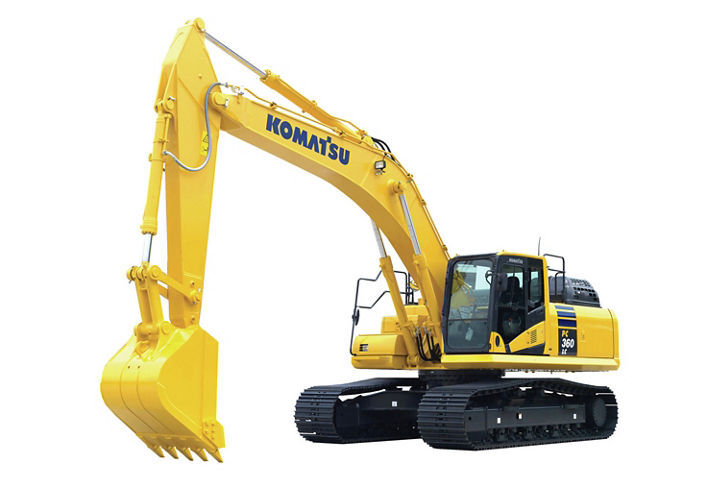

Built for strength
Equipment designed for long-term durability with high resistance to bending and torsional stress. Booms and arms are constructed with thick plates of high tensile strength streel and designed with large cross-sectional areas.

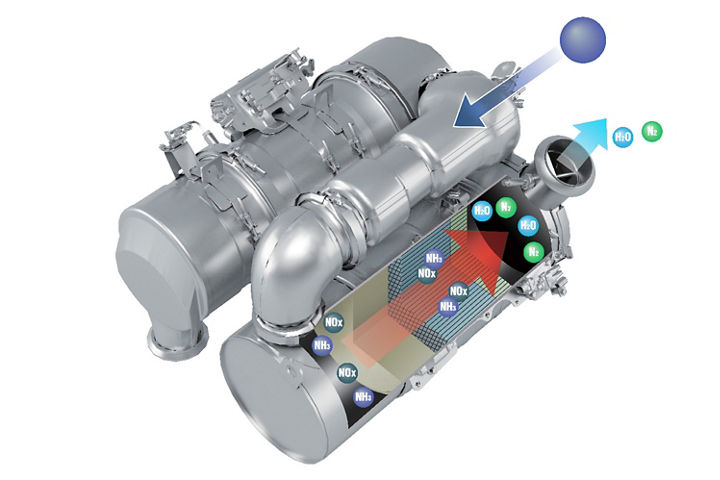

Cleaner emissions
A heavy-duty aftertreatment system that combines a Komatsu Diesel Particulate Filter (KDPF) and selective catalytic reduction (SCR). The system injects the correct amount of diesel exhaust fluid at the proper rate, decomposing nitrogen oxide.

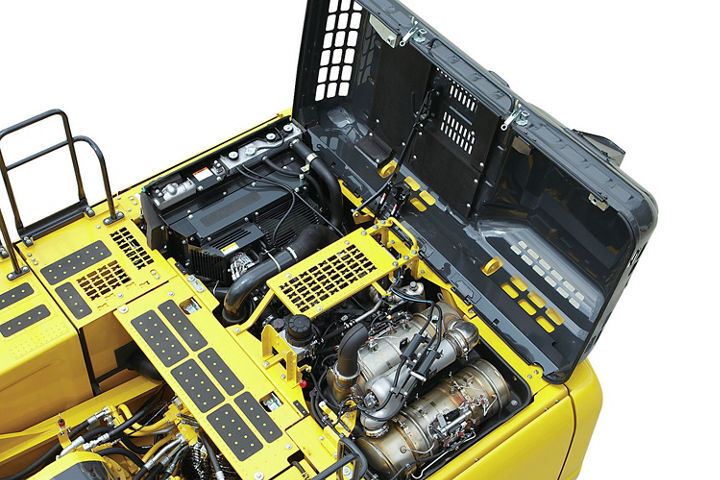

Easy access
Engine oil check and filter locations integrated into one side to allow easier maintenance access.

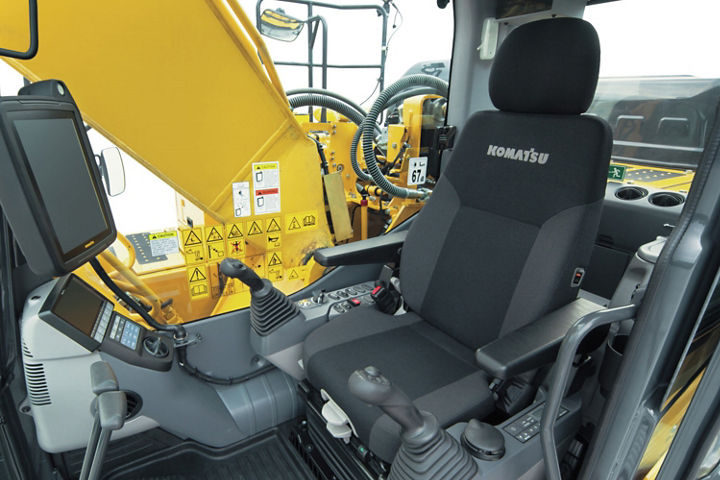

Advanced ergonomic design
Wide spacious cab includes a heated air suspension seat with reclining backrest. Seat height and position are easily adjusted using a pull-up lever. Armrest position easily adjusted with the console.

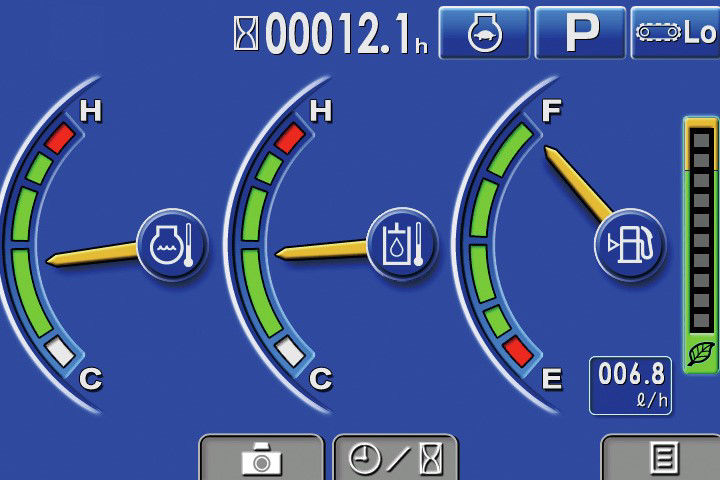

Information at your fingertips
Updated, large, high-resolution LCD color monitor to ease accurate and smooth work. Key machine information displayed in user-friendly interface, rearview camera and DEF level gauge display added to default main screen.

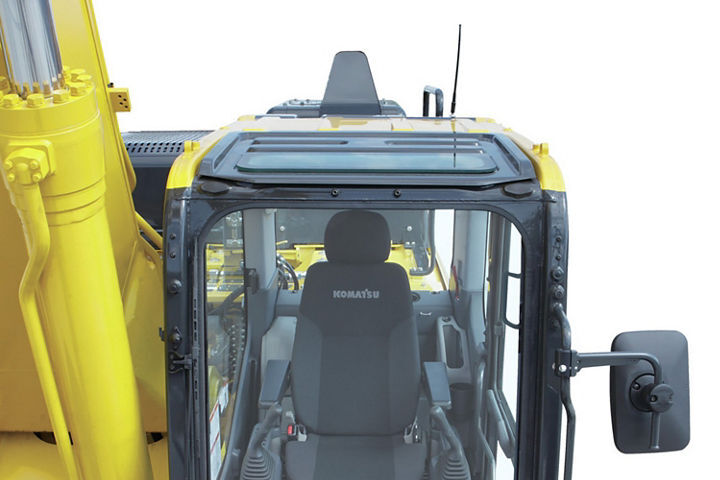

Rollover protection
A ROPS cab that conforms to ISO 12117-2 comes as standard equipment. It also satisfies requirements for level 1 operator protective guard (OPG) and top guard (ISO 10262).

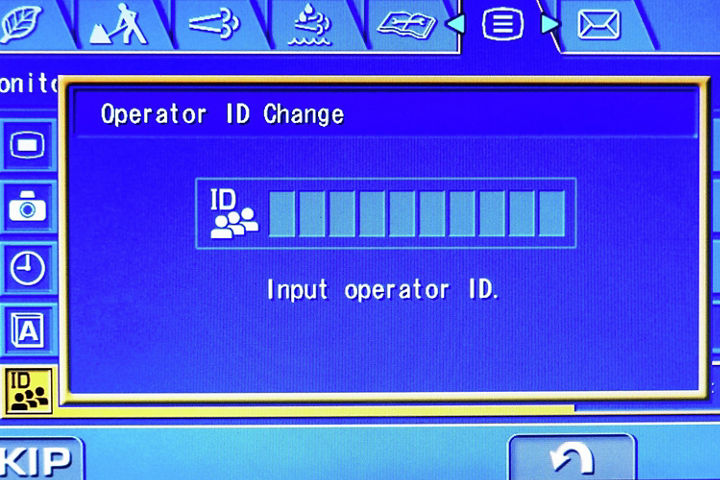

Multi-operator productivity
An operator identification ID can be set up for each operator and used to manage operation information of individual machines using Komtrax data. Data can analyze operation status by operator and by machine.

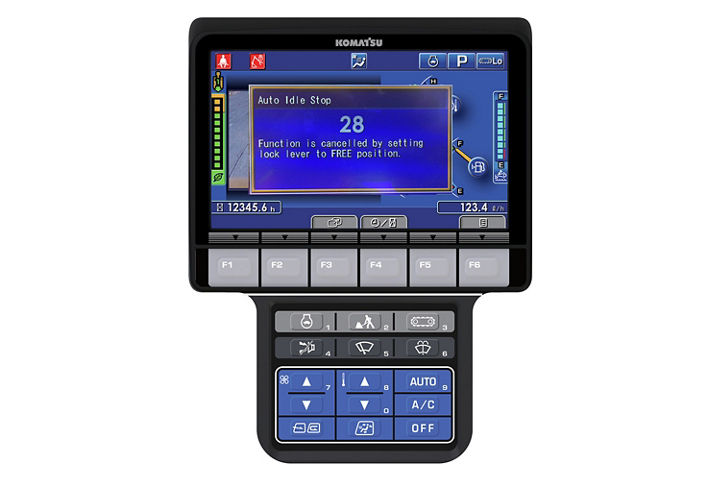

Reduce fuel consumption
Auto idle shutdown automatically shuts the engine down after idling for a set period to reduce unnecessary fuel consumption and exhaust emissions. Time before engine is shutdown can be programmed from 5 to 60 minutes.

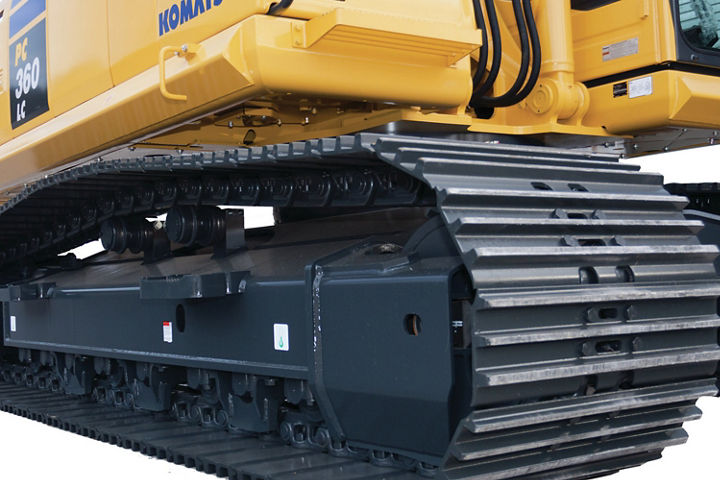

Designed for durability
Large heavy-duty revolving frame guards and swivel guard help protect vital components from damage and debris build-up.

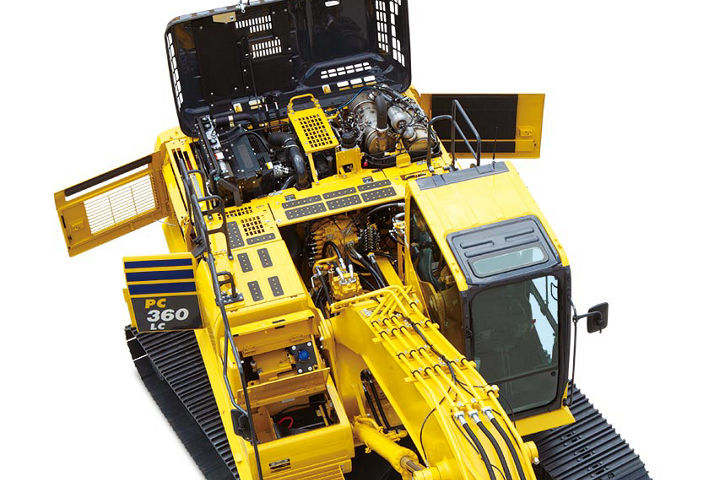

Ease of maintenance and serviceability
Provide a convenient and more secure work area in front of the engine. A new step provides easier access for filling the AdBlue/DEF tank.
