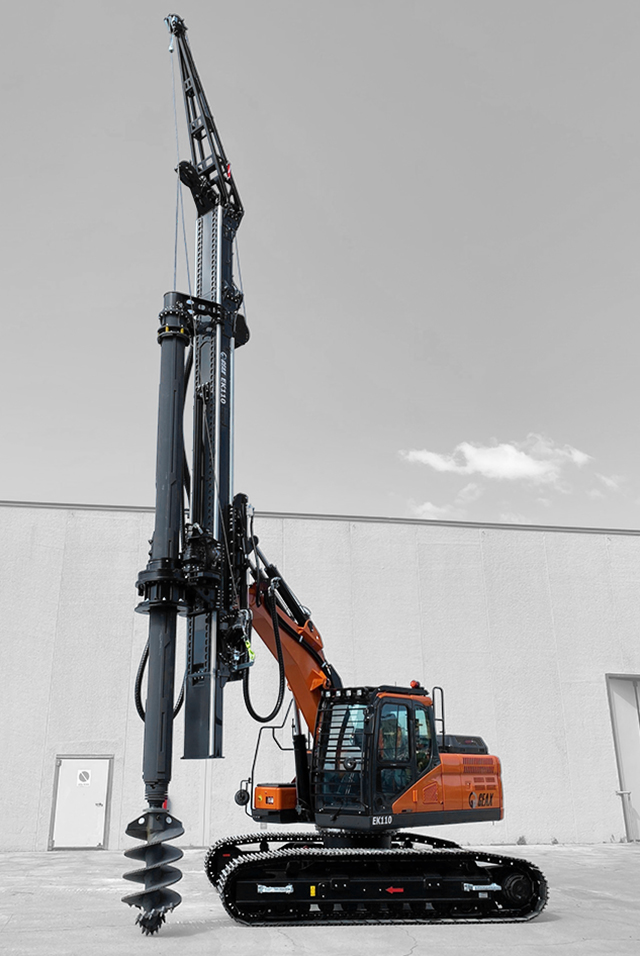

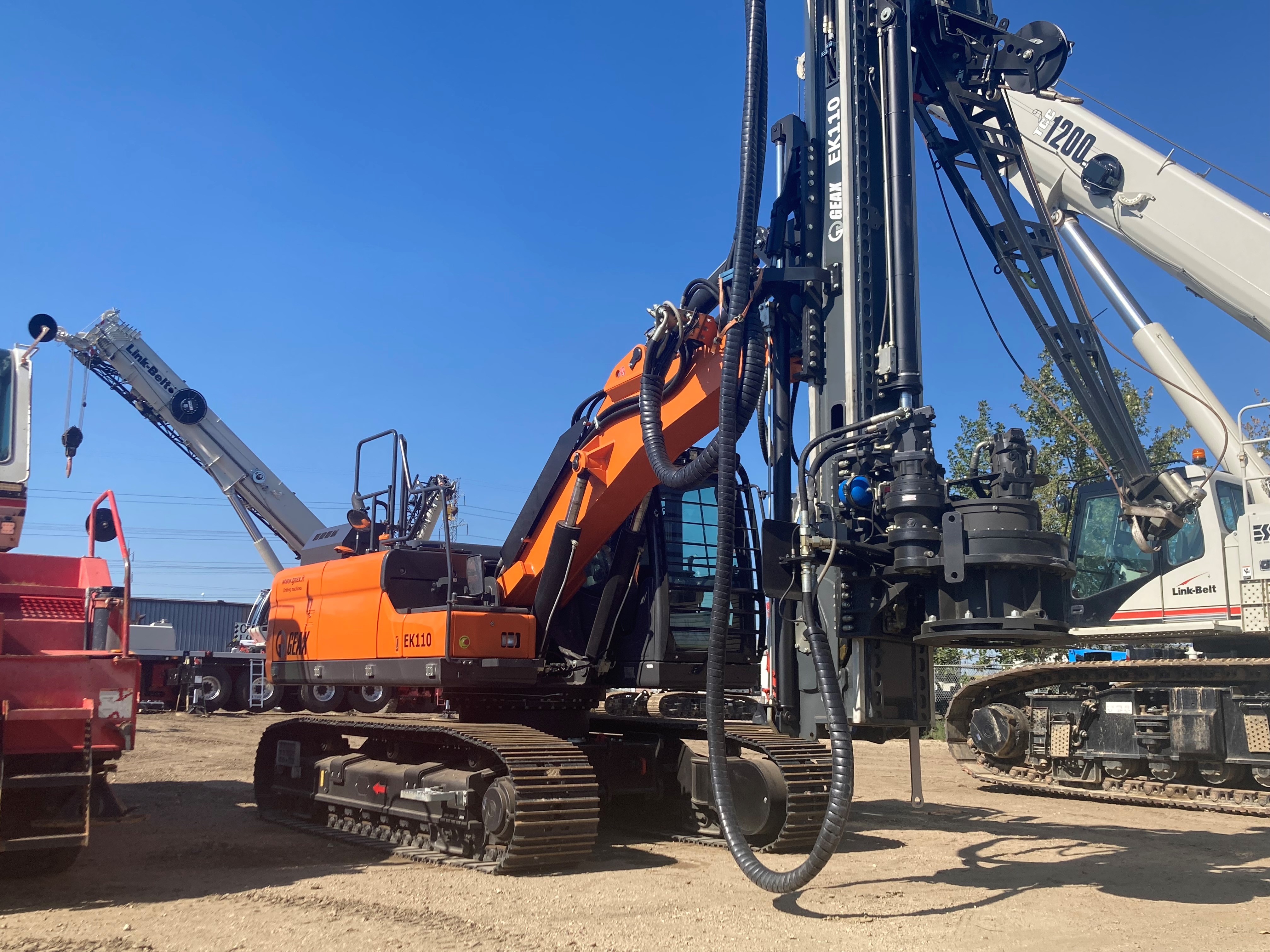

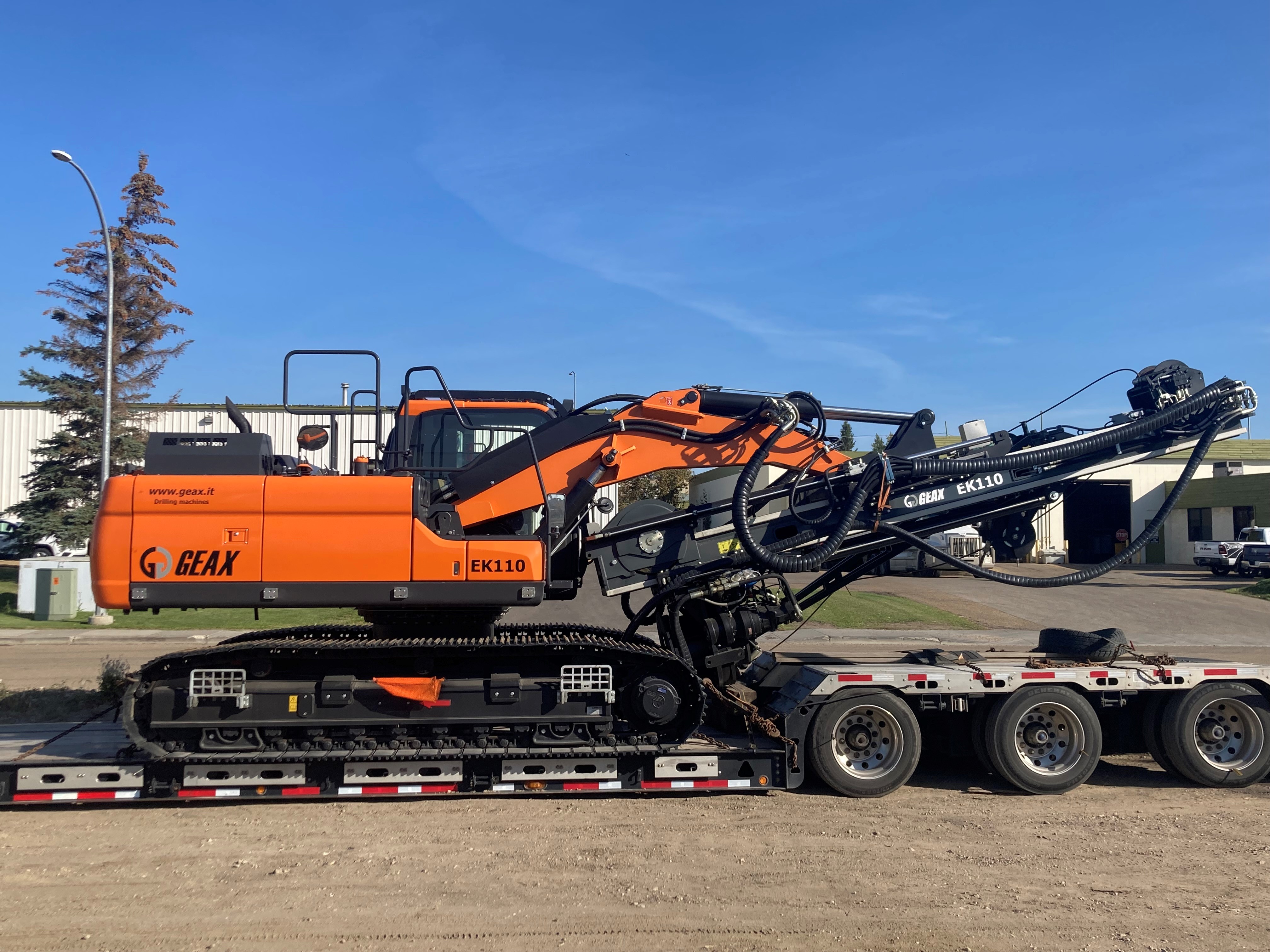

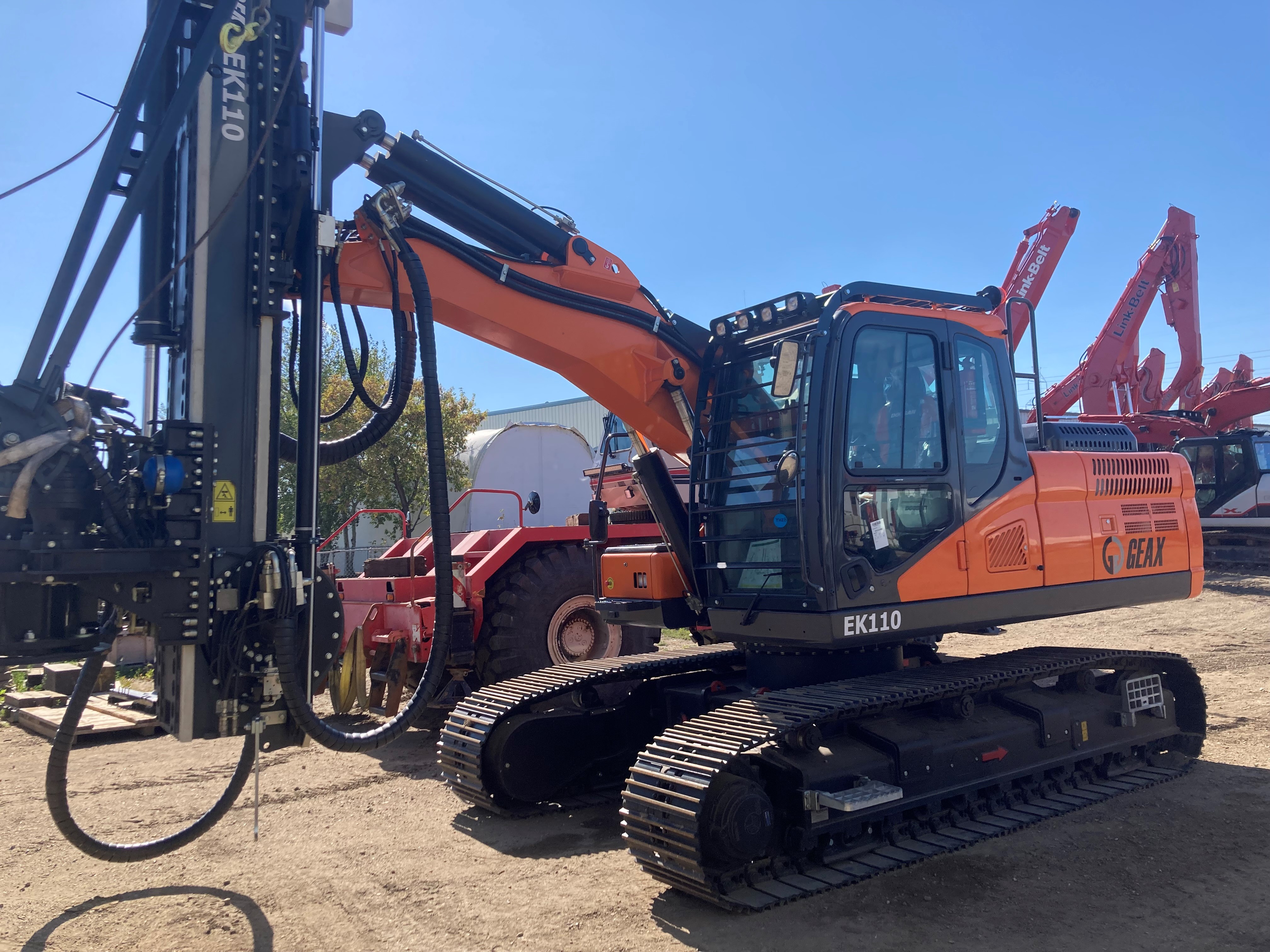

2023 GEAX EK110 CFA
- Share
2023 GEAX EK110 CFA
Price
CONTACT US FOR PRICING
Hours
Currency
Serial Number
Contact Number
17804404010
(800) 263-4597
Location
Equipment Sales & Service Limited - Edmonton
.webp)
Images
DESCRIPTION
| Base | |
| Engine power | 124 kW – 166 hp |
| Undercarriage length | 4.504mm – 14.7 ft |
| Width over tracks* | 2.540 / 2.990 / 2.550-3.700 mm – 8.3/9.8/8.3-12.1 ft |
| Mast | |
| Forward inclination | >10° |
| Backward inclination | >10° |
| Lateral inclination | ±5.5° |
| Mast vertical stroke | 2.250 mm – 7.4 ft |
| Rotary | |
| Nominal torque | 107 kNm – 78.920 lbf ft |
| Drilling speed | 10 ÷ 35 rpm – spin off: 70 rpm |
| Rotary stroke | from 14.000 mm – 45.9 ft |
| Winches | |
| Main winch line pull | 170 kN – 38.200 lbf |
| Aux winch line pull | 52 kN – 11.690 lbf |
| Crowd system | |
| Pull down force | 170 kN – 38.200 lbf |
| Extraction force | 310 kN – 69.700 lbf |
| Total rotary stroke | 16.250 mm – 53.3 ft |
| Excavation | |
| Max pile diameter | 800 mm – 30 in |
| Max pile depth* | up to 20.5 m – 67 ft |
| Min working headroom* | 8.650 mm – 28.3 ft |
| Transport | |
| Length* | 12.500 mm – 41 ft |
| Width* | 2.540 mm – 8.3 ft |
| Height | 3.150 mm – 10.3 ft |
| Weight* | from 30.300 kg – 66.800 lb |
*depending on the configuration
